GRF1-P-P-02-E-ST-TH1
| Manufacturer | |
| Description | Conn RF System PL 0Hz to 6GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel CONN MMCX PLUG GANG 2POS PCB Samtec 50Ω 直向 印刷电路板安装安装 MMCX 连接器, 插头, 通孔端接, 0 → 6GHz, RG316 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM8075 | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 6 GHz | Impedance | 50 Ohm |
| Impedance (Max) (Zzt) | 50Ω | ||
Mechanical
| Depth | 5 | Pitch | 0.197" (5.00mm) |
| Height | 4.46 | Packaging | Tray |
| Cable Type | RG316 | Body Finish | 镀金 |
| Orientation | 直 | Termination | Solder |
| Body Material | Brass | Mounting Type | Through Hole |
| Connector Type | MMCX Plug, Ganged | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Beryllium Copper |
| Length - Overall | 10 | Size / Dimension | 微小型 |
| Termination Rows | 通孔 | Height Above Board | 0.176" (4.47mm) |
| Insulation Material | Polytetrafluoroethylene | Number of Positions | 2 |
| Mated Stacking Heights | 6.4mm | Contact Finish Thickness | 50µin (1.27µm) |
Product Info
| Type | RF System | Gender | PL |
| Series | GRF1-P | Connection Type | PCB |
| RF Family/Standard | GRF1-P | ||
Documents & Media
PDF Document
Similar Parts

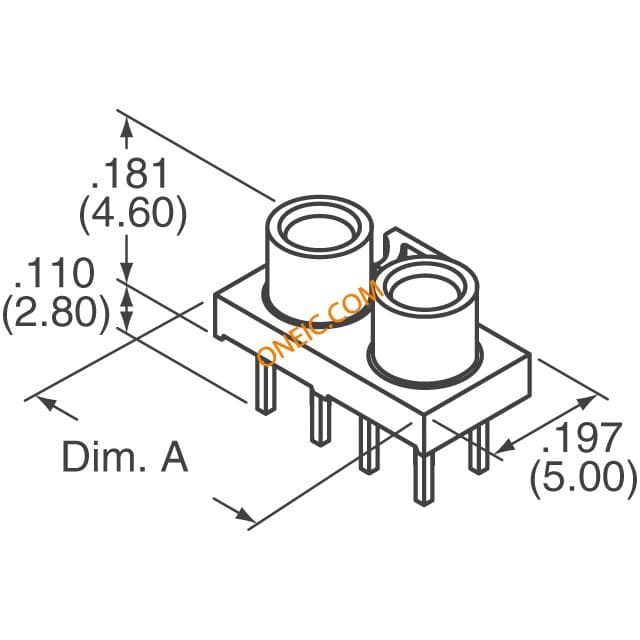

GRF1-J-P-02-E-ST-TH1-E
