GRF1-J-P-02-E-ST-TH1-E
| Manufacturer | |
| Description | Conn RF System F 0Hz to 6GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel CONN MMCX JACK GANG 2POS PCB Samtec 50Ω 直向 印刷电路板安装安装 MMCX 连接器, 插座, 螺纹端接, 0 → 6GHz, RG316 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM8068 | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Frequency | 0 to 6 GHz | Impedance | 50 Ohm |
| Impedance (Max) (Zzt) | 50Ω | ||
Mechanical

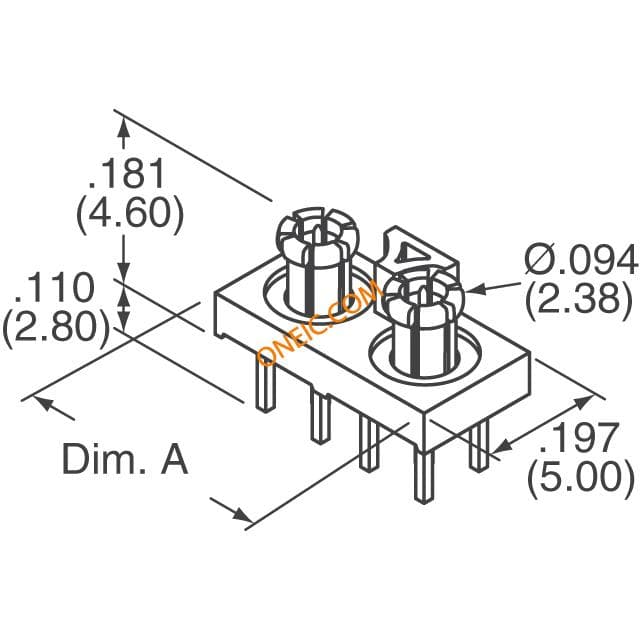

| Pitch | 0.197" (5.00mm) | Packaging | Tray |
| Cable Type | RG316 | Body Finish | 镀金 |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | MMCX Jack, Ganged |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Beryllium Copper | Size / Dimension | 微小型 |
| Termination Rows | 螺纹 | Height Above Board | 0.181" (4.60mm) |
| Number of Positions | 2 | Mated Stacking Heights | 6.4mm |
| Contact Finish Thickness | 50µin (1.27µm) | ||
Product Info
| Type | RF System | Gender | F |
| Series | GRF1-J | Features | Threaded Inserts |
| Connection Type | PCB | RF Family/Standard | GRF1-J |
