点击放大查看
R114665000
| Manufacturer | |
| Description | Conn SMB RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel RF Connectors / Coaxial Connectors SMB(M) R/A NA PCB JACK SMB, RIGHT ANGLE, PCB |
| Category |
Business
| Product | PCB Receptacles | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500 V | Coupling Factor | Slide On |
| Frequency - Max | 4 GHz | Voltage - Breakdown | :700V |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Depth | 6.3 mm | Height | 8.55 mm |
| Weight | 0.004 | Material | :Brass |
| Cable Type | :- | Body Finish | Gold |
| Orientation | Right Angle | Termination | Solder |
| Body Material | Brass | Mounting Type | Through Hole |
| Connector Type | :SMB Coaxial | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Plating - Body | Gold Over Nickel |
| Contact Material | Brass | Length - Overall | 14.15 mm |
| Supplier Device Package | Right Angle | 1st Connector Mounting Type | :PCB |
Product Info
| Type | SMB | Gender | RCP |
| Series | :- | DELETED | Compliant |
| Polarity | Standard | Connection Type | PCB |
| RF Family/Standard | SMB | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Similar Parts

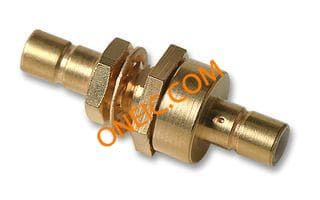

R114753000
