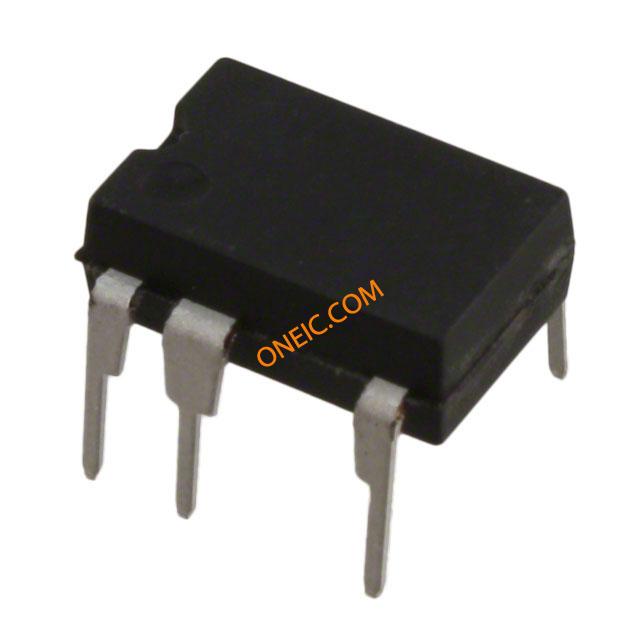

TNY280PG
| Manufacturer | |
| Description | 28.5 W (85-265 VAC) 36.5 W (230 VAC) Off Line Switcher 7-Pin PDIP-C IC OFFLINE SWIT OVP OTP HV 8DIP AC/DC Converters 28.5 W (85-265 VAC) 36.5 W (230 VAC) |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | TinySwitch | Other Names | 596-1320-5 |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Output Power | 28.5 W | Power (Watts) | 36.5W |
| Voltage Rating | 12 V | Frequency Range | 124kHz ~ 140kHz |
| Current - Output | 1 A | Current - Supply | 630 uA |
| Duty Cycle (Max) | 65 % | Output Isolation | Isolated |
| Voltage - Supply | 85 VAC | Number of Outputs | 1 |
| Voltage - Breakdown | 700V | Frequency - Switching | 132 kHz |
Mechanical
| Packaging | Tube | Mounting Style | Through Hole |
| Package / Case | 7PDIP-C | Supplier Device Package | DIP-8C |
Product Info
| Type | Off Line Switcher | Series | TNY280 |
| Manufacturer | Power Integrations | ||
Environmental
| Operating Temperature | -40 to 150 °C | ||
