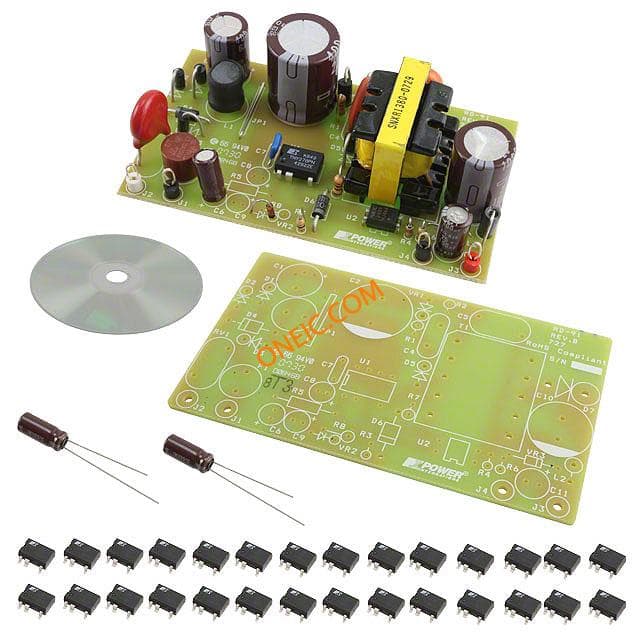

TNY275GN
| Manufacturer | |
| Description | Off Line Switcher 7-Pin SMD-C IC OFFLINE SWIT OVP OTP HV 8SMD TNY275GN, Intelligent Power Switch Off Line Switcher, 15W, 7-Pin, PDIP SMD, SMD-8C AC/DC Converters 11.5W 85-265 VAC 15W/230 VAC Analog switch; SO8 Switching Regulator SMD-8B (7-PIN), TNY275GN, Power Integrations Power Integrations 智能电源开关, 15W, 7针 PDIP SMD封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | TinySwitch | Product Category | AC/DC Converters |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Frequency | 132kHz | Output Type | Adjustable |
| Power - Max | 15W | Output Power | 11.5 W |
| Power (Watts) | 15W | Power - Rated | 15W |
| Voltage - Max | 700V | Voltage Rating | 12 V |
| Frequency Range | 124kHz ~ 140kHz | Current - Output | 295 uA |
| Current - Supply | 295 uA | Duty Cycle (Max) | 65 % |
| Output Isolation | Isolated | Voltage - Supply | 85 VAC |
| Number of Outputs | 1 | Voltage - Breakdown | 700V |
| Frequency - Switching | 132 kHz | On-State Resistance (Max) | 19Ω |
Mechanical
| Width | 6.6mm | Height | 3.68mm |
| Length | 9.83mm | Weight | 0.81 g |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 7 |
| Package / Case | 7SMD-C | Package Cooled | PDIP SMD, SMD-8C |
| Package Quantity | 5 | Size / Dimension | 9.83 x 6.6 x 3.68mm |
| Number of Positions | 7 | Supplier Device Package | SMD-8C |
Product Info
| Spg | 5 | Type | Off Line Switcher |
| Series | TNY274-280 | Function | Regulator |
| Topology | Flyback | Switch Type | Off Line Switcher |
| Manufacturer | Power Integrations | Number of Units | 1 |
Environmental
| Operating Temperature | -40 to 150 °C | ||
