RDK-115
| Manufacturer | |
| Description | MULTIPLE OUTPUT DVD, SET-TOP BOX POWER SUPPLY Power Management IC Development Tools TINYSWITCH-PK REF. DESIGN KIT KIT REFERENCE DESIGN W/TN376PN |
| Category |
Business
| Product | Reference Design Kits | Other Names | 596-1145 |
| Product Category | Power Management IC Development Tools | Standard Package | 1 |
Compliance
| RoHS | Not applicable / Not applicable | ||
Electrical
| Power - Output | 7.5W | Current - Output | 500mA, 500mA, 250mA, 30mA |
| Regulator Topology | Flyback | Frequency - Switching | 132kHz |
| Voltage - Input (Min) | 3.3V, 5V, 12V, -12V | ||
Mechanical
| Packaging | Box | Board Thickness | Fully Populated |
Product Info
| Contents | Board | Main Purpose | AC/DC, Primary Side |
| Outputs and Type | 4, Isolated | Utilized IC / Part | TNY376 |
Documents & Media
Similar Parts
TNY376GN
power integrations
17 W (85-265 VAC) 22 W (230 VAC) Line Switcher 7-Pin SMD-C IC OFFLINE SWIT UVLO 8SMD AC/DC Converters 17 W (85-265 VAC) 22 W (230 VAC)
TNY376DG
power integrations
Off-Line Switcher 7-Pin SOIC-C 17 W (85-265 VAC) 22 W (230 VAC) IC OFFLINE SWIT UVLO 8SOIC AC/DC Converters 17 W (85-265 VAC) 22 W (230 VAC)

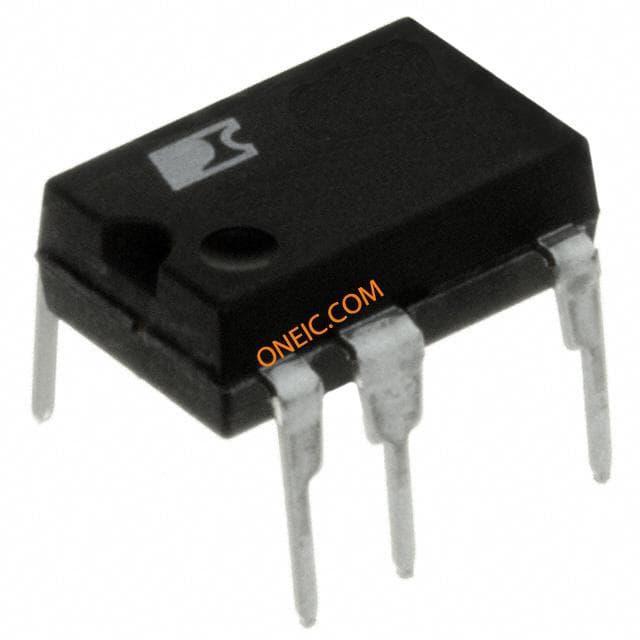

TNY376PN
