LNK564GN
| Manufacturer | |
| Description | Off Line Switcher 7-Pin SMD-B IC OFFLINE SWIT OTP HV 8SMD LNK564GN, Intelligent Power Switch Off Line Switcher, 3W, 7-Pin, SMD-8B AC/DC Converters 2.1W 85-265 VAC 2.9W 230 VAC Switching Regulator SMD-8B (7-PIN), LNK564GN, Power Integrations Power Integrations 链路开关, 3W, 7针 SMD-8B封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | AC/DC Converters | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Output Type | Adjustable | Power - Max | 3W |
| Power (Watts) | 3W | Power - Rated | 3W |
| Voltage Rating | 5.8 V | Frequency Range | 93kHz ~ 107kHz |
| Current - Output | 220 uA | Current - Supply | 220 uA |
| Duty Cycle (Max) | 70 % | Output Isolation | Isolated |
| Voltage - Supply | 85 VAC | Number of Outputs | 1 |
| Voltage - Breakdown | 700V | Frequency - Switching | 100 kHz |
Mechanical
| Width | 6.6mm | Height | 3.68mm |
| Length | 9.83mm | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 7 | Package / Case | 7SMD-B |
| Package Cooled | SMD-8B | Package Quantity | SMD-8B |
| Size / Dimension | 9.83 x 6.6 x 3.68mm | Number of Positions | 7 |
| Supplier Device Package | SMD-8B | ||
Product Info
| Series | LinkSwitch®-LP | Function | Regulator |
| Topology | Flyback | Switch Type | Off Line Switcher |
| Manufacturer | Power Integrations | ||
Environmental
| Operating Temperature | -40 to 150 °C | ||
Documents & Media
Similar Parts

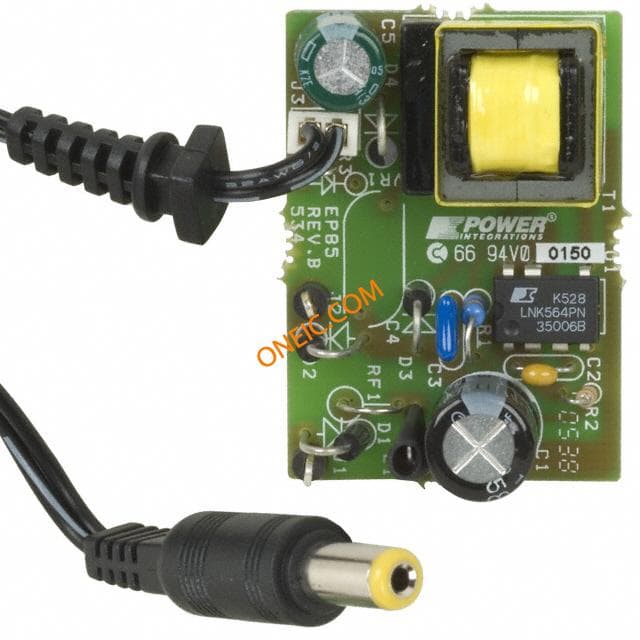

DAK-85
