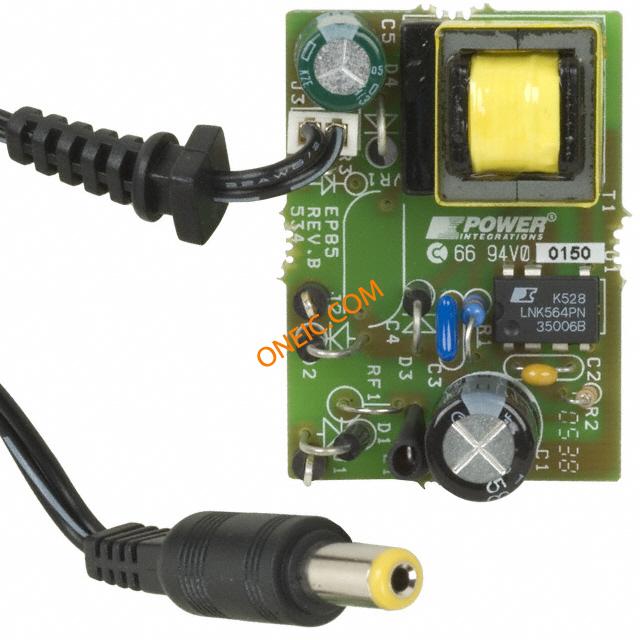

DAK-85
| Manufacturer | |
| Description | AC-DC LINEAR CHARGER REPLACEMENT Power Management IC Development Tools AC-DC Linear Charger Replacement DESIGN ACCELERATOR KIT LP SWITCH Switching controller design kit, DAK-85, Power Integrations |
| Category |
Business
| Other Names | 596-1104 | Product Category | Power Management IC Development Tools |
| Standard Package | 1 | ||
Compliance
| RoHS | No | ||
Electrical
| Output | 6 V @ 2 W | Power - Output | 2W |
| Current - Output | 330mA | Regulator Topology | Flyback |
| Frequency - Switching | 100kHz | Voltage - Input (Min) | 6V |
Mechanical
| Packaging | Box | Board Thickness | Bare (Unpopulated) and Fully Populated |
Product Info

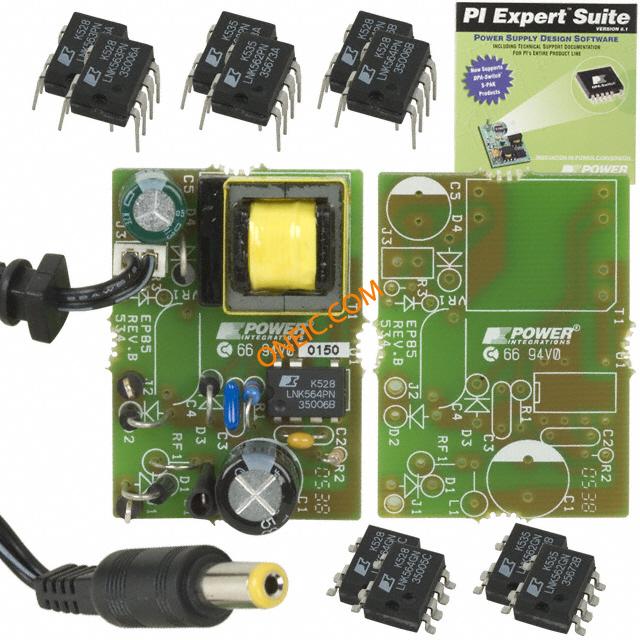

| Contents | Board, Samples, Software | Main Purpose | AC/DC, Primary Side |
| Outputs and Type | 1, Isolated | Module/Board Type | LinkSwitch-LP |
| Utilized IC / Part | LNK562, LNK563, LNK564 | Application Specifics | Charging electronics |
