LNK563DN
| Manufacturer | |
| Description | Off Line Switcher 7-Pin SOIC-C IC OFFLINE SWIT OTP HV 8SOIC LNK563DN, Intelligent Power Switch Off Line Switcher, 2.5W, 7-Pin, SOIC-8C AC/DC Converters 2.5 W (85-265 VAC) 2.5 W (230 VAC) Power Integrations 链路开关, 2.5W, 7针 SOIC封装 |
| Category |
Business
| Product Category | AC/DC Converters | Standard Package | Rail / Tube |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Power (Watts) | 2.5W | Power - Rated | 2.5W |
| Frequency Range | 77kHz ~ 89kHz | Current - Output | 160 uA |
| Current - Supply | 160 uA | Duty Cycle (Max) | 70 % |
| Output Isolation | Isolated | Voltage - Supply | 265 VAC |
| Voltage - Breakdown | 700V | Frequency - Switching | 83 kHz |
Mechanical
| Width | 3.9mm | Height | 1.65mm |
| Length | 4.9mm | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 7 | Package / Case | 7SOIC-C |
| Package Cooled | SOIC-8C | Package Quantity | SOIC |
| Size / Dimension | 4.9 x 3.9 x 1.65mm | Number of Positions | 7 |
| Supplier Device Package | SO-8C | ||
Product Info
| Series | LNK56 | Switch Type | Off Line Switcher |
| Manufacturer | Power Integrations | ||
Environmental
| Operating Temperature | -40 to 150 °C | ||
Documents & Media
Similar Parts
DAK-85
power integrations

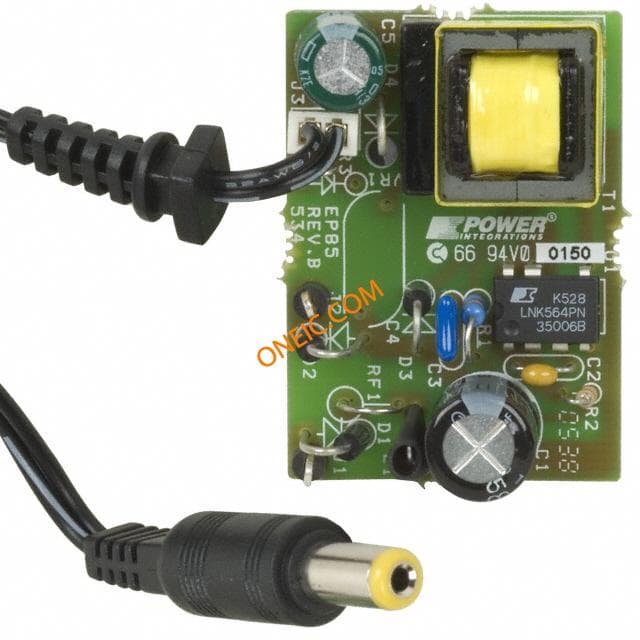

AC-DC LINEAR CHARGER REPLACEMENT Power Management IC Development Tools AC-DC Linear Charger Replacement DESIGN ACCELERATOR KIT LP SWITCH Switching controller design kit, DAK-85, Power Integrations
RDK-83
power integrations

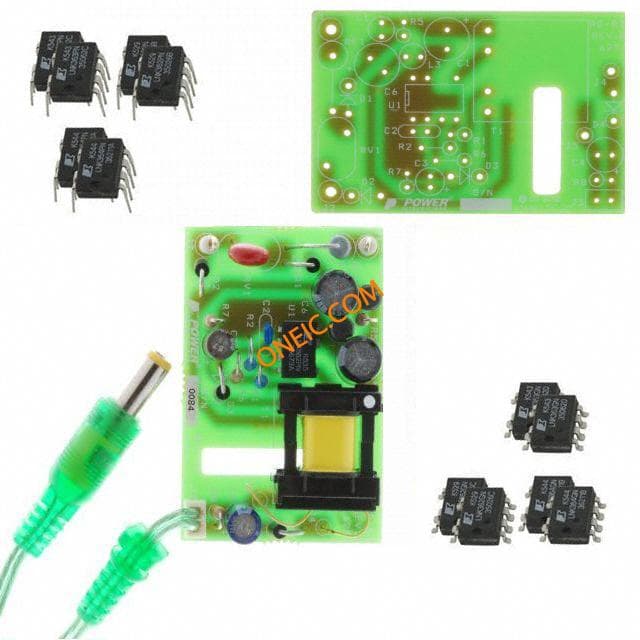

1.75 W CV CORDLESS PHONE ADAPTER Power Management IC Development Tools LinkSwitch-LP Family KIT DESIGN REF LINKSWITCH LP Development Kit, Power Management With Documentation, Linear Replacement Adapter, Reference Board, Samples Power Integrations LinkSwitch-LP 套件 电源 开发套件
