5169-2
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA PLUG RED BU-00246-2 Conn Banana Plug PL 1 POS Crimp/Solder ST Cable Mount 1 Port BANANA PLUG W/BOOT 18-22AWG RED Plug;BananaPlug;15A;Red;Brass;BerylliumCopper;5000VDC;50degC |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1659580 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Red | Width | 0.35in. |
| Height | 1.500in. | Diameter | 0.150in. |
| Packaging | Bulk | Insulation | Sheathed |
| Wire Gauge | 18-22 AWG | Termination | Crimp|Solder |
| Body Material | Polyvinyl Chloride (PVC) | Housing Color | Red |
| Mounting Type | Cable Mount | Contact Finish | Nickel |
| Material - Body | Brass,Alloy360 | Contact Material | Beryllium Copper |
| Housing Material | Polyvinyl Chloride | Length - Overall | 52.32 |
| Material - Frame | BerylliumCopper | Primary Material | Banana |
| Number of Contacts | 1 | Insulation Material | Polypropylene |
| Length - Termination | 0.560in. | Material - Insulation | FlexiblePVC |
| Plug/Mating Plug Diameter | Standard | ||
Product Info
| Type | Banana Plug | Gender | PL |
| Manufacturer | 5169Series | Equipment Type | Banana Plugs |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 50°C | Operating Temperature - Junction | 50°C |
Documents & Media
Similar Parts

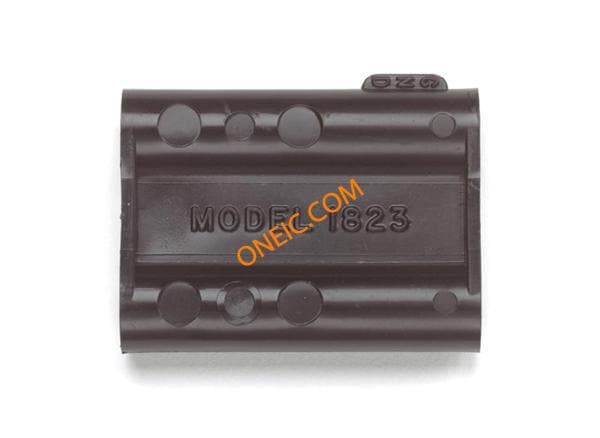

1823-2
