2854-2
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA JK RED Conn Banana Jack F 1 POS ST Panel Mount 1 Port BANANA JACK PNL MT 10PC GOLD RED BANANA JACK, 15A, TURRET, RED Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 5935001628622 | Part # Aliases | 3807327 |
| Product Category | Test Plugs & Test Jacks | Standard Package | 1 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Red | Height | 12.7 |
| Length | 1.22 in | Weight | 0.054 |
| Diameter | 12.7 | Packaging | 10 per Bag |
| Insulation | Mating End Insulated | Termination | Turret |
| Body Material | Polycarbonate (PC) | Housing Color | Red |
| Mounting Type | Panel Mount | Contact Finish | Nickel |
| Mounting Style | Panel | Material - Body | Brass |
| Contact Material | Brass | Housing Material | Polycarbonate |
| Length - Overall | 30.99 | Primary Material | Banana |
| Color - Connectors | :Red | Number of Contacts | 1 |
| Contact Termination | :Stud / Turret | Insulation Material | Polycarbonate |
| Material - Insulation | Polycarbonate | Plug/Mating Plug Diameter | Standard |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Banana Jack | Gender | F |
| Series | :2854 | Manufacturer | 2854Series |
| Equipment Type | Banana Jacks | Number of Ports | 1 |
Environmental
| Operating Temperature | 115°C | Operating Temperature - Junction | 115°C |
Documents & Media
Online Document
PDF Document
PDF Document
Similar Parts
1325-2
Pomona Electronics
Test Plugs & Test Jacks RED BANANA PLUG BU-16-2 Conn Banana PL 1 POS Screw ST Cable Mount 1 Port PLUG BANA SOLDRLSS NCKL RED 10PC BANANA PLUG, 15A, SCREW, RED BananaJack;BananaJack;15A;Red;BerylliumCopper;5000Vrms(Max.) Solderless Stackup Banana Plug, Red 10 Pack
$11.9823
Details

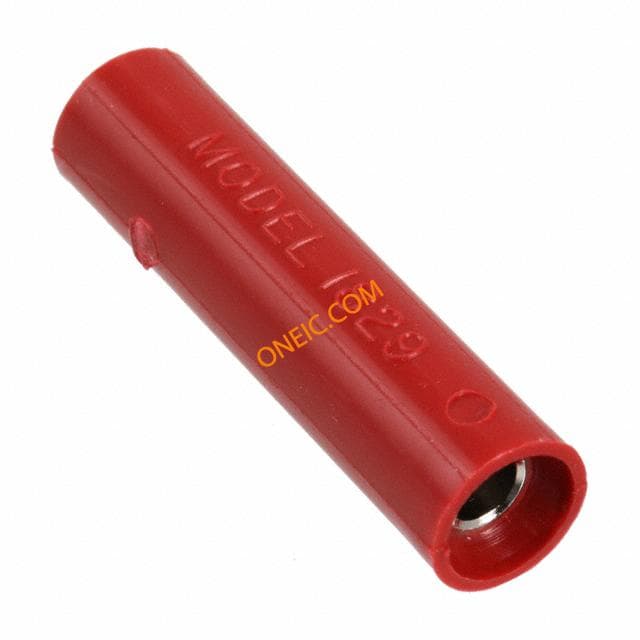

1829-2
