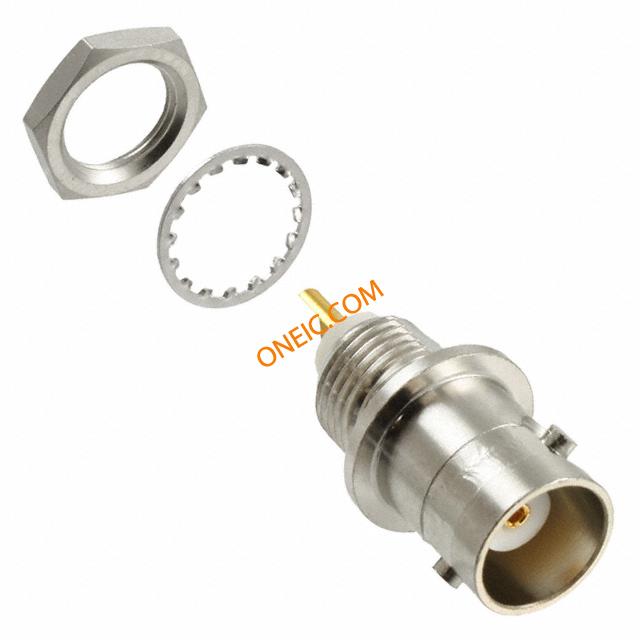

4160
| Manufacturer | |
| Description | RF Connectors 50 OHM BNC RECPT. Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold Bag CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors 50 OHM BNC RECPT. RF/COAXIAL, BNC BHD JACK STRAIGHT, 50 OHM Connector,Bulkhead;50Ohms;Bulkhead;BNC;Gold;Female;Brass;PTFE |
| Category |
Business
| Product | Connectors | Part # Aliases | 2397802 |
| Product Category | RF Connectors | Standard Package | 1 |
| Factory Pack Quantity | 6 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Impedance | 50 Ohms | Voltage Rating | 500V |
| Frequency - Max | 4GHz | Voltage - Limiting (Max) | Coaxial Cable |
Mechanical
| Length | 27.18 | Weight | 0.009 |
| Material | Polytetrafluoroethylene | End Style | Solder Cup |
| Packaging | Bag | Cable Type | :- |
| Body Finish | Nickel | Orientation | Straight |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | BNC |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | TarnishResistantBrass | Mounting Style | Bulkhead |
| Connector Style | BNC | Material - Core | Brass |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Solder |
| Diameter - Outside | 12.7 | Mating Orientation | Bayonet |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Bulkhead |
Product Info
| Type | BNC | Gender | Receptacle (Female) |
| Features | Extended Insulation | Polarity | Normal |
| RF Family/Standard | BNC | Assembly Configuration | Panel Mount |
Environmental
| Operating Temperature | - 65 C to + 165 C | ||
Documents & Media
Similar Parts

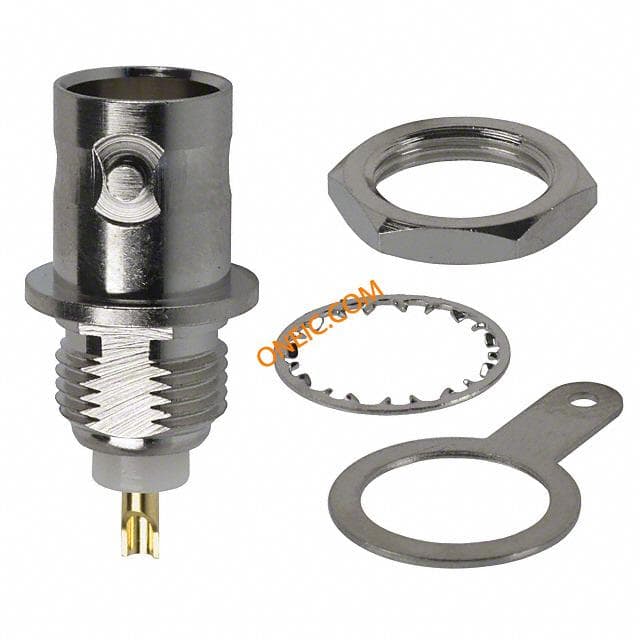

112424
amphenol connex
Conn BNC F 0Hz to 4GHz 50Ohm Solder Pot ST Panel Mount Gold CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc bulkhead receptacle jack;solder pot terminal;solder tab RF Connectors / Coaxial Connectors BNC BULKHEAD RECPT 50 OHM 3.2PNL/THK RF COAXIAL, BNC, JACK, SOLDER, 50OHM connector, rf coaxial, bnc bulkhead receptacle jack, solder pot terminal, solder tab
73100-0195
molex
Conn BNC F 50Ohm Solder Pot ST Panel Mount Gold Bulk RF Connectors / Coaxial Connectors BNC STR BLKHD REC JACK, BNC, 50OHM, STRT, BLKH
5085
Pomona Electronics
RF Connectors SHORTING CAP FOR B SHORTING CAP FOR BNC FML W/CHAIN RF Connectors / Coaxial Connectors SHORTING CAP FOR B Connector Accessories BNC Cap Straight Brass Silicone Gasket Coaxial/RF;Cap-w/Chain;BNC;Shorting;Male;Brass;forBNCFemale;Straight

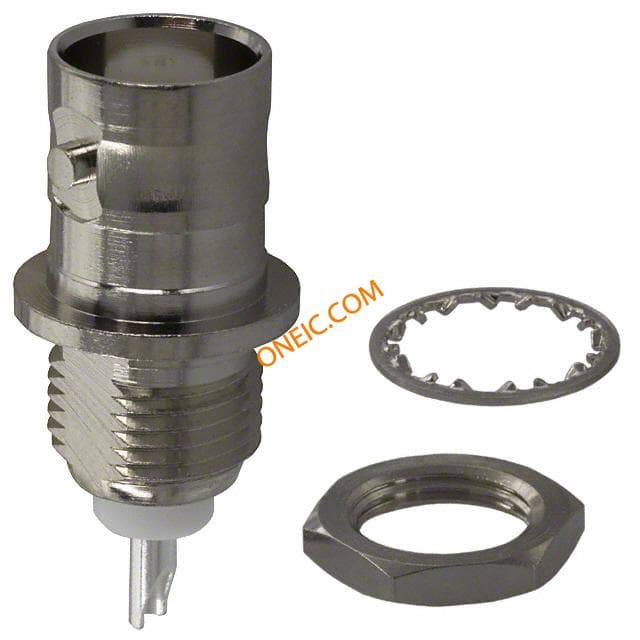

31-221
Amphenol RF
RF Connectors BULKHEAD JACK 50 ohm SOLDER UG-1094/U CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BULKHEAD JACK 50 ohm SOLDER UG-1094/U Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver RF/COAXIAL BNC BHD JACK STR 50 OHM SOLDER
3839
Pomona Electronics
RF Connectors BNC DUST CAP W/CHAIN BNC Cap For Females, With Bead Chain DUST CAP FOR BNC FEMALE W/CHAIN RF Connector Accessories BNC DUST CAP W/CHAIN BNC DUST CAP, BRASS Coaxial/RF;Cap-w/Chain;BNC;Protective;Male;Brass;forBNCFemale;Straight

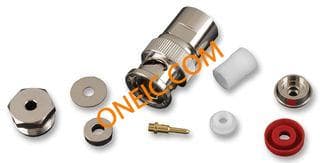

5307
