31-221
| Manufacturer | |
| Description | RF Connectors BULKHEAD JACK 50 ohm SOLDER UG-1094/U CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BULKHEAD JACK 50 ohm SOLDER UG-1094/U Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver RF/COAXIAL BNC BHD JACK STR 50 OHM SOLDER |
| Category |
Business
| Product | Connectors | Part # Aliases | 031-221 16R0559 39F075 713-1073 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85369010 |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Coupling Factor | Bayonet | Frequency - Max | 4GHz |
Mechanical
| Weight | 0.255983 oz | Packaging | Bulk |
| Cable Type | :RG58, RG59, RG179, RG316 | Body Finish | Nickel |
| Orientation | Straight | Weight (g): | 8.40000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Jack, Female Socket |
| Contact Finish | Silver | Fastening Type | Bayonet Lock |
| Connector Style | BNC | Contact Material | Beryllium Copper |
| Termination Style | Solder Cup | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Silver | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Straight | ||
Product Info
| Gender | Jack | Features | Extended Insulation |
| Polarity | Standard | RF Family/Standard | BNC |
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms
031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms

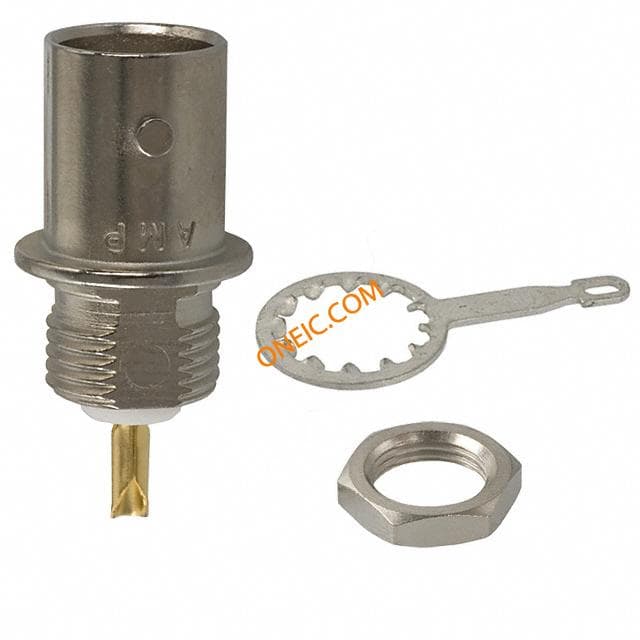

5227716-3
