点击放大查看

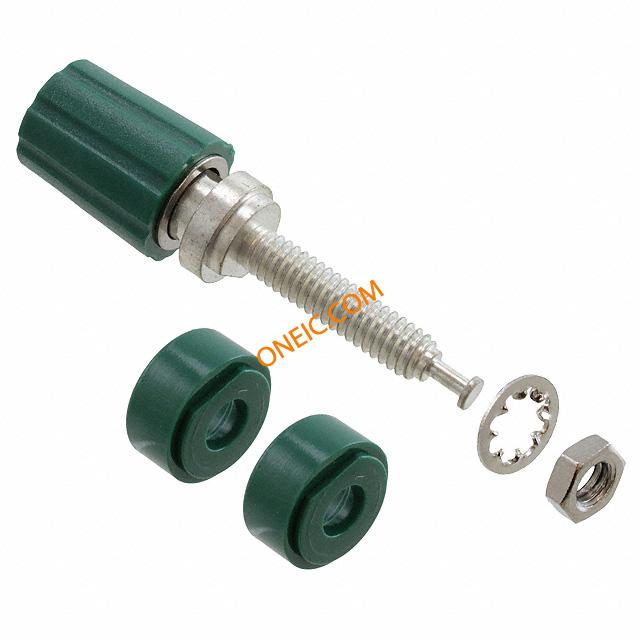

3760-5
| Manufacturer | |
| Description | Test Plugs & Test Jacks BINDING POST TIN Conn Binding Post SKT 1 POS ST Panel Mount 1 Port Fluke BINDING POST, TIN PLT, (GREEN) BINDING POST TIN PLATED GREEN BINDING POST, 15A, TURRET, GREEN BindingPost;StandardBindingPost;15A;2500V(RMS)(Max.);Polycarbonate; |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1930268 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Voltage Rating | 33Vrms/70VDC | Current Rating (Max) | 15A |
Mechanical
| Color | Green | Depth | 11.18 |
| Weight | 0.014 | Head Size | 0.440" OD (11.18mm) |
| Head Style | Knurled | Insulation | Insulated |
| Nut Plating | Nickel | Termination | Threaded and Turret |
| Thread Size | #8-32 | Nut Material | Brass |
| Head Diameter | Hex | Housing Color | Green |
| Mounting Type | Panel Mount | Contact Finish | Bright Tin-Lead |
| Plating - Body | Tin | Material - Body | Brass |
| Panel Thickness | 0.070" ~ 0.250" (1.77mm ~ 6.35mm) | Contact Material | Brass |
| Housing Material | Polycarbonate | Length - Overall | 45.21 |
| Color - Connectors | :Green | Number of Contacts | 1 |
| Termination Thread | 8-32 | Contact Termination | :Stud / Turret |
| Cross Hole Diameter | 0.096" (2.43mm) | Material - Insulation | Polycarbonate (PC) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Binding Post | Gender | SKT |
| Series | :3760 | Equipment Type | Binding Posts |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 115 | ||
