点击放大查看

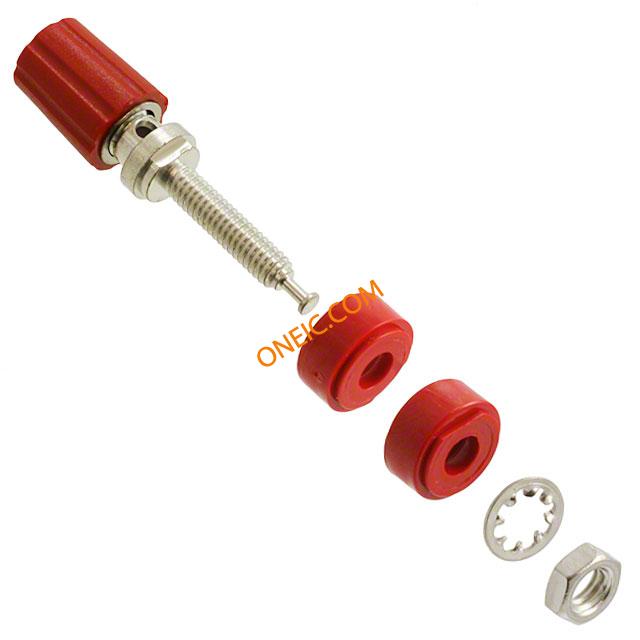

3760-2
| Manufacturer | |
| Description | Test Plugs & Test Jacks 15A 2500 VDC RED Conn Binding Post SKT 1 POS ST Panel Mount 1 Port Fluke BINDING POST, TIN PLT, (RED) POST BINDING TIN PLATE BRASS RED ADAPTER BIND POST TIN PLT BULK BINDING POST, 15A, TURRET, RED BindingPost;StandardBindingPost;15A;2500V(RMS)(Max.);Polycarbonate; |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 6625012290777 | Part # Aliases | 1930210 |
| Product Category | Test Plugs & Test Jacks | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Red | Depth | 11.18 |
| Weight | 0.018 | Head Size | 0.440" OD (11.18mm) |
| Head Style | Knurled | Insulation | Insulated |
| Nut Plating | Nickel | Termination | Threaded and Turret |
| Thread Size | #8-32 | Nut Material | Brass |
| Body Material | :Brass | Head Diameter | Hex |
| Housing Color | Red | Mounting Type | Panel Mount |
| Contact Finish | Tin | Plating - Body | Tin |
| Material - Body | Brass | Panel Thickness | 0.070" ~ 0.250" (1.77mm ~ 6.35mm) |
| Contact Material | Brass | Housing Material | Polycarbonate |
| Length - Overall | 45.21 | Color - Connectors | :Red |
| Number of Contacts | 1 | Termination Thread | 8-32 |
| Contact Termination | :Stud / Turret | Cross Hole Diameter | 0.096" (2.43mm) |
| Material - Insulation | Polycarbonate (PC) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Panel mount | Gender | SKT |
| Series | :3760 | Equipment Type | Binding Posts |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 115 | ||
Documents & Media
Similar Parts

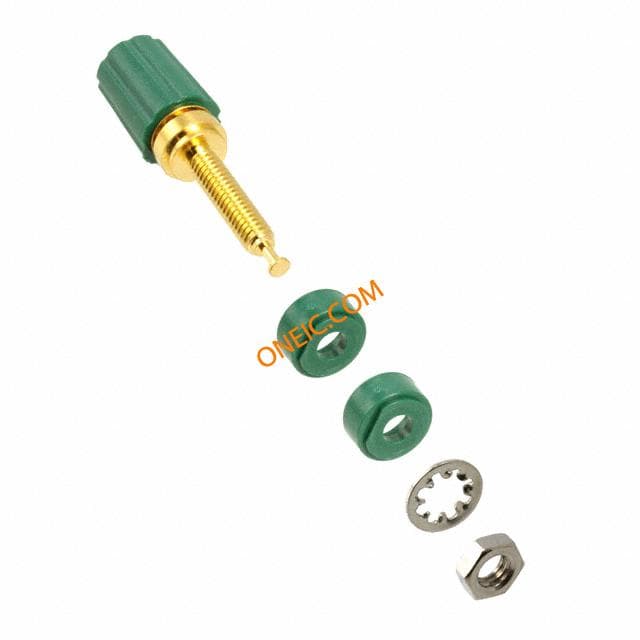

3750-5
