点击放大查看

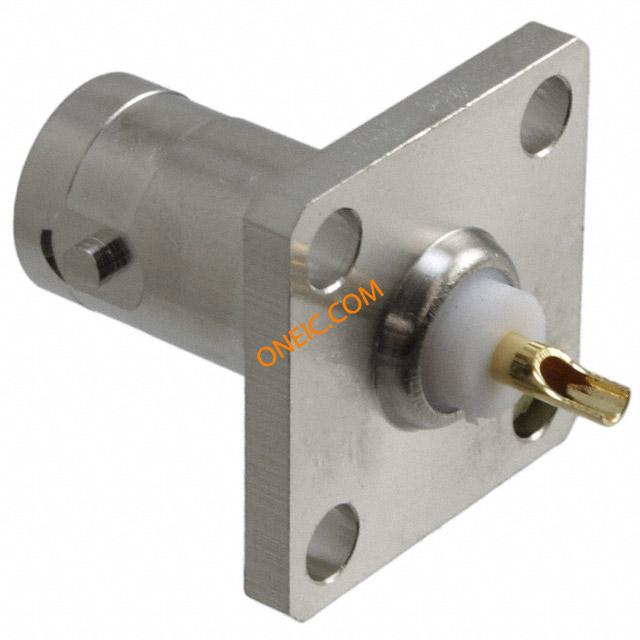

2451
| Manufacturer | |
| Description | RF Connectors BNC PANEL RECP CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BNC PANEL RECP Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold SOCKET, BNC, FLANGE MOUNT Connector;50Ohms;BNC;Gold;Panel;Female;Brass;BerylliumCopper;PTFE |
| Category |
Business
| Product | Connectors | Part # Aliases | 1933930 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 5 |
| Factory Pack Quantity | 6 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366910 | ||
Electrical
| Impedance | 50 Ohm | Frequency - Max | 4GHz |
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Cable Type | :- | Body Finish | Nickel |
| Orientation | Straight | Termination | :Solder |
| Body Material | Brass | Housing Color | Silver |

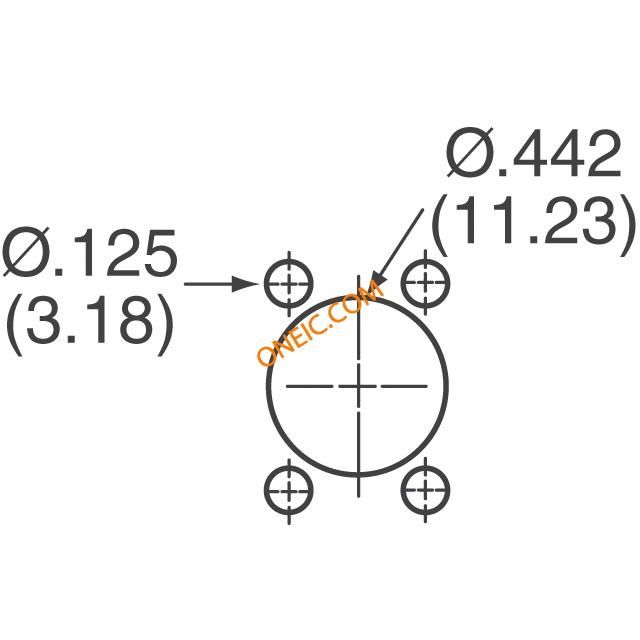

| Mounting Type | Panel Mount, Square Flange | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | TarnishResistantBrass |
| Mounting Style | 4-HoleFlange | Connector Style | BNC |
| Contact Material | :Beryllium Copper | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Solder |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | :Straight Jack | 1st Connector Mounting Type | :Panel |
Product Info
| Type | PanelJack | Gender | Jack |
| Series | :- | Features | Extended Insulation |
| Polarity | Standard | RF Family/Standard | BNC |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
