2249-C-6
| Manufacturer | |
| Description | RF Cable Assemblies 1/2" BNC M/M 50 OHM CABLE ASSEMBLY Cable Assembly RG58C/U 0.152m 20AWG BNC to BNC M-M RF Cable Assemblies 1/2' BNC M/M 50 OHM CABLE ASSEMBLY CABLE BNC MALE RG58C/U 6IN COAXIAL CABLE ASSEMBLY CableAssy;6in.;20AWG;RG58C/U;CEMarked BNC Male Patch Cable 50 Ohms, .5', RG58C/U |
| Category |
Business
| Part # Aliases | 1931561 | Product Category | RF Cable Assemblies |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | CE | Tariff No | 85444920 |
Electrical
| Impedance | 50 Ohm | Voltage - Input (Min) | 500VAC |
Mechanical

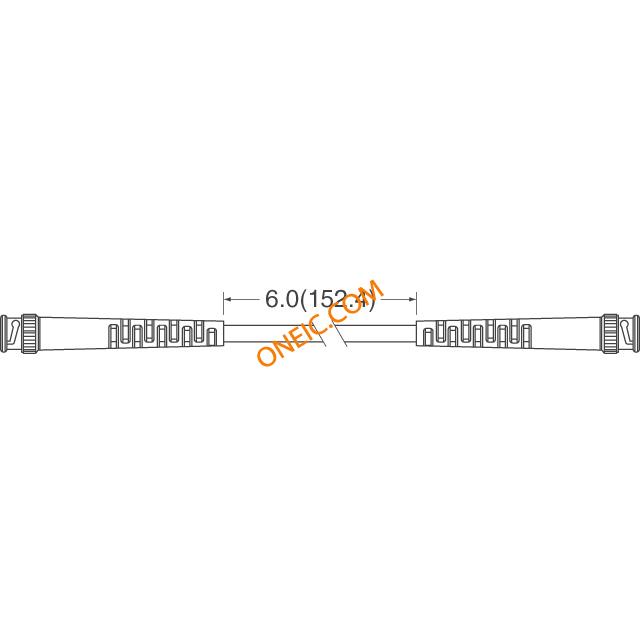

| Color | Black | Length | 6.00" (152.4mm) |
| Weight | 0.045 | Shielding | TinnedCopperBraid |
| Cable Type | RG58C/U | Wire Gauge | 20 |
| Cable Length | :6" | Jacket Color | :Black |
| 1st Connector | BNC Male Plug | 2nd Connector | BNC Male Plug |
| Wire Diameter | 20AWG | Connector Type | BNC |
| Contact Finish | Gold | Contact Material | Brass |
| Connector - Cable | Straight | 2nd Connector Type | BNCPlug |
| Conductor Material | TinnedCopper | 1st Connector Gender | Plug (Male) |
| 2nd Connector Gender | Plug (Male) | Material - Insulation | Polyethylene |
| Number of Cable Pairs | 19×33 | ||
Product Info
| Type | Coaxial/RF | Style | BNC to BNC |
| Gender | M-M | Series | BNC |
| Features | Shielded | Application Specifics | ForRFtransmissionsystems,thinnestLAN,testandmeasurement |
Environmental
| Temperature Rating | -40to+85°C | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
1058077-1
te connectivity / amp
Conn SMB-BNC Adapter PL/RCP 0Hz to 4GHz 50Ohm ST Gold Over Copper Between Series Adapters, RF Connectors CONN ADAPTER SMB PLUG - BNC JACK Conn SMB-BNC Adapter PL/RCP 0Hz to 4GHz 50Ohm ST Gold Over Copper Product Highlights:Plug-JackAdapter Type = SMB to BNCSearch Keywords:RF, 3282 2223 00

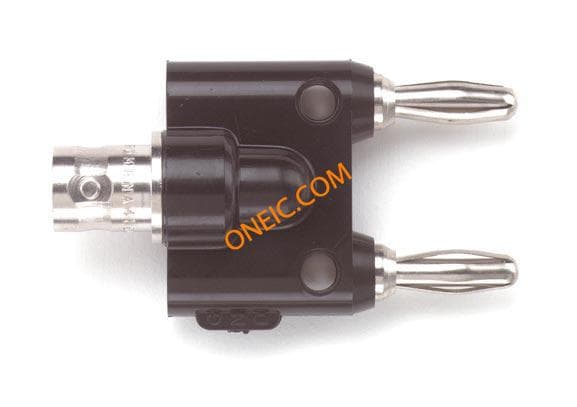

1269
