1269
| Manufacturer | |
| Description | RF Adapters - Between Series ADAPTER,BNC FEMALE TO DOUBLE BAN PLUG BNC-Banana Plug F-M 1/2 POS ST RF Adapters - Between Series DBL BANANA/BNC (F) ADAPTER BNC FEMALE-DBL BANA PLUG ADAPTOR, BNC SOCKET TO 2 X 4MM BANANA Adapter,Banana;BNC(Female);BerylliumCopper,NickelPlated;PTFE;Black BNC Female to Double Stacking Banana Plug Adapter BNC Female Connector – 2x Binding Posts ø 4 mm / BNC 30 VAC 60 VDC 52.1 mm, 1269, Pomona |
| Category |
Business
| Part # Aliases | 1943979 | Product Category | RF Adapters - Between Series |
| Standard Package | 5 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 90303100 |
Mechanical
| Color | Black | Depth | 30.22 |
| Weight | 0.022 | Body Material | Brass |
| Mounting Type | Straight | Shell Plating | Nickel |
| Connector Type | Double Banana BNC | Contact Finish | Gold |
| Length - Overall | 2.050" (52.07mm) | Number of Contacts | 1/2 |
| 1st Connector Gender | Jack (Female) | 2nd Connector Gender | Jack (Female) |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Socket |
Product Info
| Type | BNC-Banana Plug | Gender | F-M |
| Series | :- | RF Type | BNC |
| Adapter Type | Straight | Convert To (Adapter End) | Banana Plug, Double, Stackable |
| Convert From (Adapter End) | BNC Female | Number of Positions (Convert From) | :1 |
Environmental
| Operating Temperature | 50°C | ||
Documents & Media
Similar Parts
5510
Pomona Electronics
Test Plugs & Test Jacks BNC Binding Post Adapter Kit ADT KIT BNC-BAN PLUG & BIND POST Pomona BNC-4mm plug/skt adaptor kit of 6 ADAPTER KIT BNCtoBananaPlugandBindingPostAdapterKit Pomona RF 连接器套件

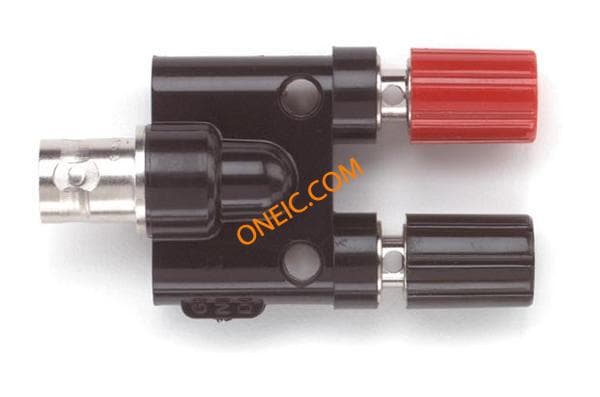

1452
