1825-6
| Manufacturer | |
| Description | Test Plugs & Test Jacks BANANA PLUG BLUE Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG PKG (BLUE) BANANA PLUG W/SHIELD 10PC BLUE BANANA PLUG, 15A, SCREW, BLUE BananaJack;BananaJack;15A;Blue;BerylliumCopper;5000Vrms(Max.) |
| Category |
Business
| Part # Aliases | 1937428 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Blue | Width | 0.44in. |
| Height | 11.18 mm | Length | 1.55 in |
| Weight | 0.064 | Diameter | 0.166in. |
| Packaging | 10 per Bag | Insulation | Non-Mating End Insulated |
| Wire Gauge | 18-22 AWG | Termination | Screw |
| Body Material | Polypropylene (PP) | Housing Color | Blue |
| Mounting Type | Cable Mount | Contact Finish | Nickel |
| Mounting Style | Cable | Material - Body | Brass |
| Contact Material | Beryllium Copper | Housing Material | Acrylonitrile Butadiene Styrene |
| Length - Overall | 39.36 mm | Material - Frame | BerylliumCopper |
| Primary Material | Banana | Color - Connectors | :Blue |
| Number of Contacts | 1 | Contact Termination | :Screw |
| Insulation Material | Polypropylene | Length - Termination | 0.55in. |
| Material - Insulation | ABS(Model4899PolyphenyleneSulfide) | Mounting Hole Diameter | 0.12" |
| Plug/Mating Plug Diameter | Standard | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Banana | Gender | PL |
| Series | :1825 | Features | Set Screw, Safety Collar |
| Manufacturer | 1825Series | Equipment Type | Banana Plugs |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 50°C | Operating Temperature - Junction | 50C |
Documents & Media
Similar Parts

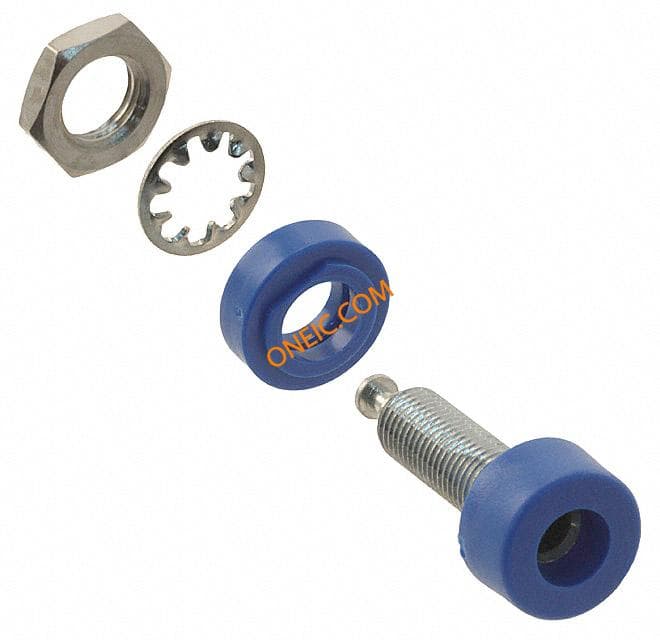

1581-6
Pomona Electronics
Test Plugs & Test Jacks PANEL MOUNT BANANA JACK BLUE Conn Banana Jack F 1 POS ST Panel Mount 1 Port JACK BANA PANEL MT TIN BLU 10PC Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate Tin Plated Panel Mount Banana Jack, Blue, 10 per Pack
2142-6
Pomona Electronics
Test Plugs & Test Jacks MIN BAN JK BLU Conn Banana F 1 POS ST Cable Mount 1 Port Fluke MINI B-JACK (BLUE) JACK BANANA MINI PNL MT 10PC BLU BANANA JACK, 5A, TURRET, BLUE Jack,Banana;BananaJack;30VAC/60VDC(Max.);5A;Brass;Polycarbonate

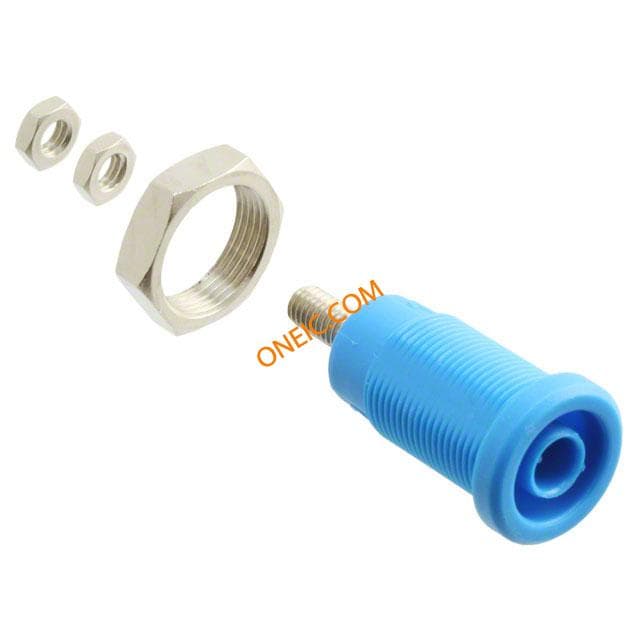

72930-6
