2961312
| Manufacturer | |
| Description | General Purpose Relays REL-MR-24DC/21HC REPLACEMENT RELAY Electromechanical Relay SPDT 16A 24VDC 1.44KOhm Through Hole RELAY GEN PURPOSE SPDT 16A 24V MIN.RELAYS,1 PDT,24 V DC RELAY, 24VDC, 16A, SPDT, PCB Relay;E-Mech;Power;SPDT;Cur-Rtg16A;Ctrl-V24DC;Vol-Rtg250AC/DC;Plug-In |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | cULus,RoHS |
| Tariff No | 85364190 | Rad Hardened | No |
Electrical
| Coil Type | Non Latching | Power - Max | 384 W |
| Range deg/s | :- | Coil Current | 17 mA |
| Coil Voltage | 24V | Release Time | 3ms |
| Power - Rated | 4kVA | Visible Output | No |
| Voltage Rating | 250VAC/VDC | Coil Resistance | 1440 Ohms |
| Pushing (MHz/V) | No | Current - Output | :16A |
| Voltage - Supply | 24 V | Switching Voltage | 250VAC, 250VDC - Max |
| Voltage - Rated AC | 250 V | Current - Switching | 30 A |
| Diode Configuration | No | Current Rating (Max) | 16A |
| Power - Output Surge | 4000 VA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :16A | Voltage - Input (Min) | 250 |
| Voltage - Switching DC | 250V dc | Power - Average Forward | 1.2 W |
| Contact Rating (Current) | 16A | Voltage - Supply, Digital | :250V |
| Voltage - Supply (Vcc/Vdd) | :250V | Voltage - DC Reverse (Vr) (Max) | 250 V |
| Drive Voltage (Max Rds On, Min Rds On) | 24VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Seal | Unsealed | Depth | 15.7mm |
| Width | :12.7mm | Height | 29mm |
| Length | 12.7mm | Weight | 0.538281 oz |
| Packaging | Bulk | Termination | Plug-In |
| Contact Form | SPDT | Height (Max) | :29mm |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Mounting Style | Plug In | Package / Case | DIP |
| Package Cooled | DIP | Contact Material | Silver Nickel |
| Length - Overall | 29 mm | Termination Style | PC Pin |
| Number of Contacts | 8 | Contact Termination | PCB |
| Number of Positions | 8 | Contact Layout, Typical | SPDT |
Product Info
| Type | Miniature Relay | Series | REL-MR |
| Function | Power | Relay Type | Non-Latching |
| Push-to-Test | No | Industry Aliases | REL-MR-24DC/21HC |
| Base Product Number | REL-MR-24DC/21HC | Application Specifics | Power |
| For Use With/Related Products | 2960630 | ||
Environmental
| Operate Time | 7ms | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
2967620
Phoenix Contact
Industrial Relays PLC-RSC-24DC/21HC RELAY PN 651-2961312 Electromechanical Relay SPDT 10A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE SPDT 10A 24V Relay PLC-RSC- 24DC/21HC RELAY, PLC, SPDT, 24VDC, DIN, SCREW Relay;E-Mech;PLC;SPDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg250AC/DC;Screw 菲尼克斯(PHOENIX) 安全继电器
2833518
Phoenix Contact
Relay Sockets & Hardware RELAY SOCKET PR1 PR1-BSC2/2X21 Relay Socket For Miniature Power Relay Or Miniature Switching Relay RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series SOCKET, RELAY, FOR PR1 SERIES RELAYSOCKETPR1
2833521
Phoenix Contact
Relay Sockets & Hardware PR1-BSC3/2X21 CONNECTOR SOCKET RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series Conn Relay Socket SKT Screw Cable Mount RELAYSOCKETPR2
2912277
Phoenix Contact
Industrial Relays PLC-RSP- 24DC/21HC 24VDC 14MM Electromechanical Relay SPDT 30A 24VDC 1.33KOhm RELAY GEN PURPOSE SPDT 10A 24V Relay PLC-RSP- 24DC/21HC PLC-RSCRelayModules,SPDT,10Aat24VDC,SpringTerminalBase
2912280
Phoenix Contact
Industrial Relays PLC-RSP- 24UC/21HC Electromechanical Relay SPDT 10A 24VDC 24VAC DIN Rail DIN RAIL TERM BLOCK W/RELAY SPDT Relay PLC-RSP- 24UC/21HC PLCRELAY,INPUT24VAC/DC
2833534
Phoenix Contact
Relay Sockets & Hardware PR1 RELAY SKT FOR MINI POWER/SWITCHING Conn Relay Socket SKT 8 POS RELAY SKT SPDT OR DPDT DIN RAIL Relay socket PR1-BSP3/2X21 PR1-BSP3/2X21
2967646
Phoenix Contact
Industrial Relays PLC-RSC-48DC/21 HC Electromechanical Relay SPDT 10A 48VDC 2.4KOhm DIN Rail DIN RAIL TERM BLOCK W/RELAY SPDT Relay PLC-RSC- 48DC/21HC PLC-RSC-48DC/21HC
2967772
Phoenix Contact

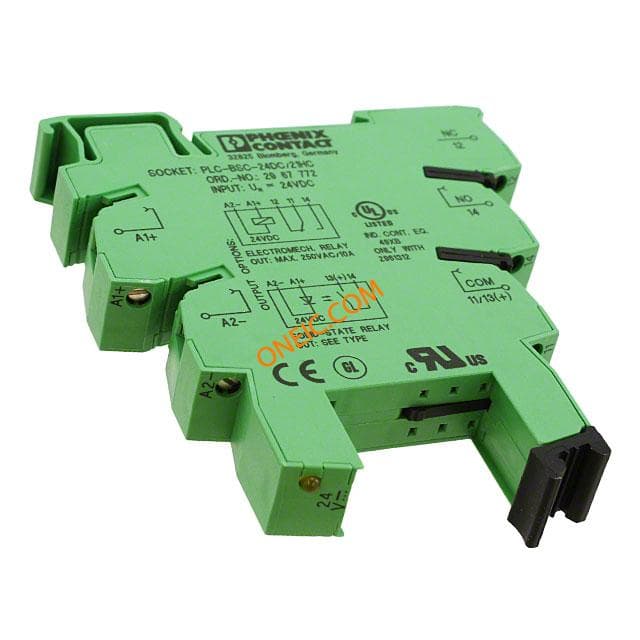

Relay Sockets & Hardware PLC-BSC-24DC/21HC Conn PLC Terminal Blocks F 5 POS Screw 14MM PLC-HC BASIC TERM BLOCK 24V Basic terminal block PLC-BSC- 24DC/21HC Socket,Relay;TerminalBlock(14mm),(InputVoltage24VAC/DC) Relay Socket Terminal Block 14mm 24 V
