2912277
| Manufacturer | |

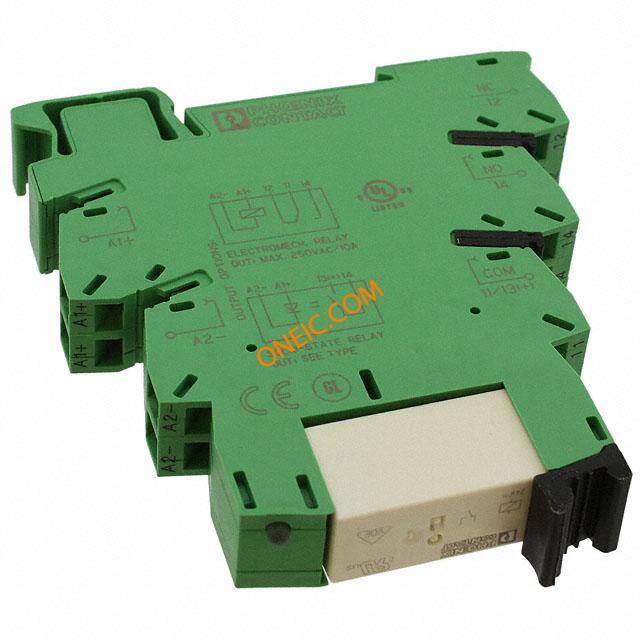

| Description | Industrial Relays PLC-RSP- 24DC/21HC 24VDC 14MM Electromechanical Relay SPDT 30A 24VDC 1.33KOhm RELAY GEN PURPOSE SPDT 10A 24V Relay PLC-RSP- 24DC/21HC PLC-RSCRelayModules,SPDT,10Aat24VDC,SpringTerminalBase |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 18 mA |
| Release Time | 10ms | Power - Rated | 2.5kVA |
| Visible Output | Yes | Voltage Rating | 250V |
| Coil Resistance | 1.33K | Pushing (MHz/V) | No |
| Voltage - Supply | 24 VDC | Switching Voltage | 250 VAC, 250 VDC |
| Diode Configuration | Yes | Current Rating (Max) | 10A |
| Voltage - Input (Min) | 250 | Contact Rating (Current) | 10 A |
| Drive Voltage (Max Rds On, Min Rds On) | 24VDC | ||
Mechanical
| Seal | Unsealed | Weight | 2.367941 oz |
| Packaging | Bulk | Termination | Screw |
| Contact Form | SPDT | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Contact Material | Silver Tin Oxide |
| Termination Style | Screwless Clamp | Number of Contacts | 5 |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | PLC Relay | Series | PLC-RSP |
| Features | LED Indicator, PLC Terminal Block | Function | PLC |
| Relay Type | Non-Latching | Manufacturer | PLC-RSC/RSP |
| Industry Aliases | PLC-RSP- 24DC/21HC | Base Product Number | PLC-RSP-24DC/21HC |
Environmental
| Operate Time | 8ms | Operating Temperature | -40°C ~ 60°C |
