1897681
| Manufacturer | |
| Description | Pluggable Terminal Blocks QC 0 5/16-STF-3 81 Conn Terminal Block F 16 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 16POS STR 3.81MM QC05/16-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 16 路 母 绿色 插头, IDC端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Tradename | COMBICON Control |
| Other Names | QC0,5/16-STF-3,81 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 6A | Voltage | 300V |
| Voltage Rating | 200 V | Current Rating (Max) | 6 A |
| Voltage - Input (Min) | 200V | ||
Mechanical
| Color | Green | Depth | 22.3 |
| Pitch | 3.81 mm | Height | 12.9 |
| Weight | 3.421574 oz | Material | 聚酰胺，镀锡 |
| Packaging | Bulk | Wire Gauge | 20-24 AWG |
| Termination | IDC | Mounting Type | Straight |
| Connector Type | 母座 | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 71.35 |
| Termination Rows | IDC | Termination Style | IDC / IDT |
| Number of Contacts | 16 | Number of Positions | 16 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 22-20 |
Product Info
| Type | Wire to Wire | Gender | F |
| Series | QC | Features | Flange |
| Number of Levels | 1 | Positions Per Level | 16 |
Documents & Media
PDF Document
Similar Parts

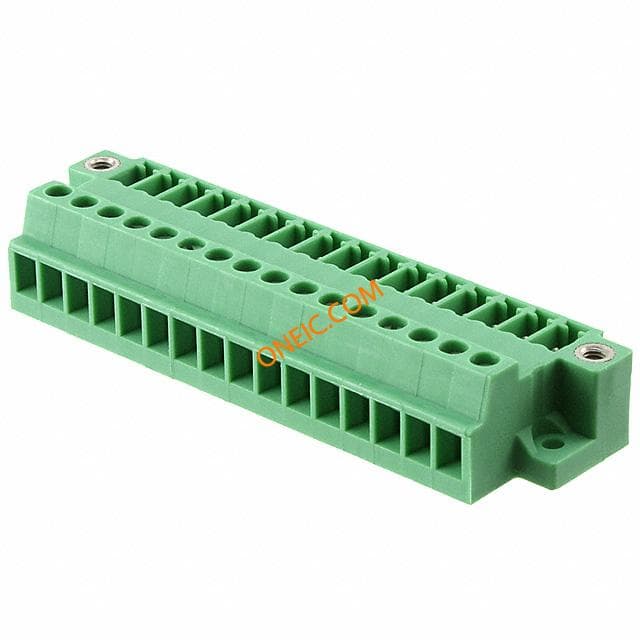

1833166
Phoenix Contact
Pluggable Terminal Blocks MCVU 1 5/16-GFD-3 81 Conn Terminal Block F 16 POS 3.81mm Screw 8A TERM BLOCK RCPT 16POS 3.81MM Plug MCVU 1,5/16-GFD-3,81 PluggableTerminalBlocks
$245.8200
Details

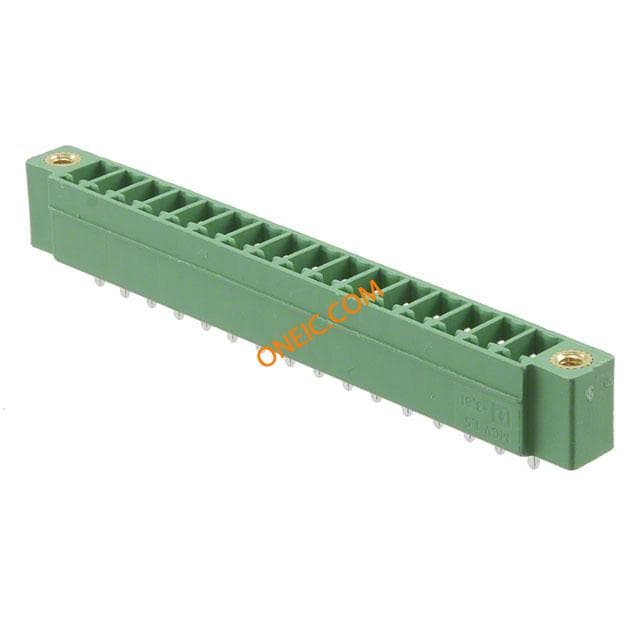

1830732
