1830732
| Manufacturer | |
| Description | Pluggable Terminal Blocks MCV 1 5/16-GF-3 81 Conn Shrouded Header HDR 16 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 16POS VERT 3.81MM Header MCV 1,5/16-GF-3,81 MCV15/16-GF-381 |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | Voltage - Supply (Min) | 160V |
Mechanical
| Color | Green | Depth | 7.25 mm |
| Pitch | 0.150" (3.81mm) | Height | 9.2 mm |
| Weight | 4 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 71.35 mm |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 16 | Number of Positions | 16 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MCV | Features | Flange |
| Number of Levels | 1 | Positions Per Level | 16 |
Documents & Media
Similar Parts
1850990
Phoenix Contact
Pluggable Terminal Blocks FRNT-MC 1 5/16-STF-3 Conn Terminal Block F 16 POS 3.81mm Screw ST Panel Mount 8A TERM BLOCK PLUG 16POS STR 3.81MM Printed-circuit board connector FRONT-MC 1,5/16-STF-3,81 Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Screw ... Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Screw connection, Color: green FRONT-MC15/16-STF-381
1897681
Phoenix Contact
Pluggable Terminal Blocks QC 0 5/16-STF-3 81 Conn Terminal Block F 16 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 16POS STR 3.81MM QC05/16-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 16 路 母 绿色 插头, IDC端接

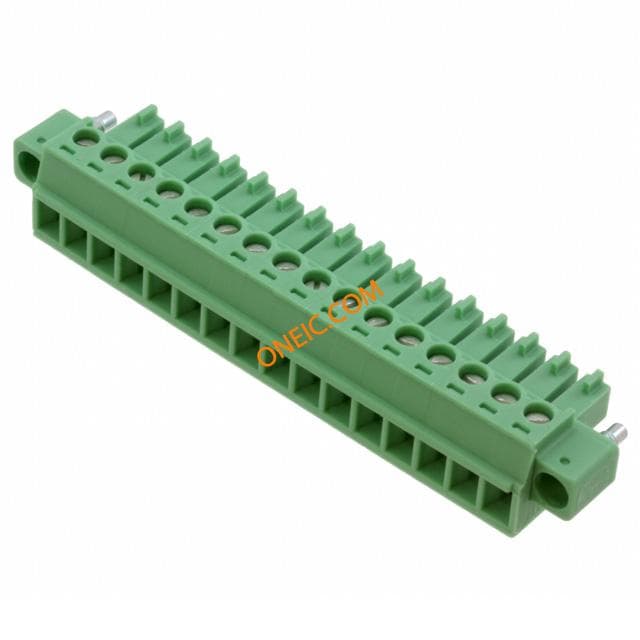

1827842
