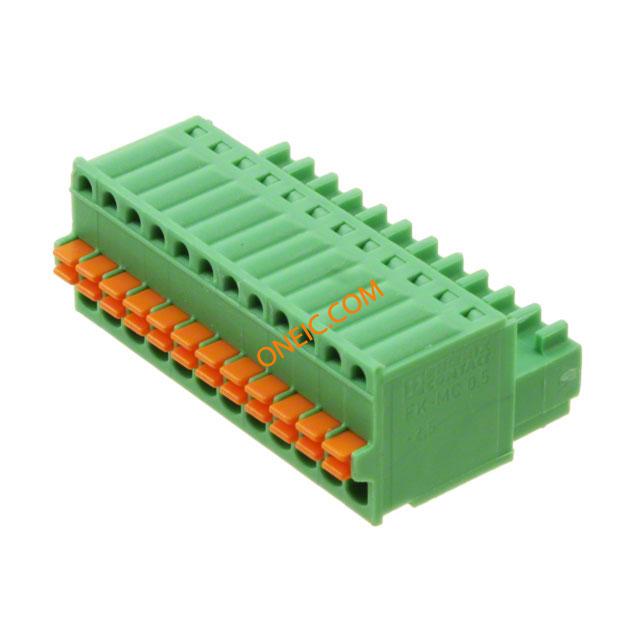

1881422
| Manufacturer | |
| Description | Pluggable Terminal Blocks 12P 2.5mm 180 DEG Conn Spring Cage F 12 POS 2.5mm ST 4A TERM BLOCK PLUG 12POS STR 2.5MM Non-Fused Terminal Block 12 Way, 80V Conn;TermBlk;Plug;SpringCage;12;2.5mm;26-20AWG;Green;4A;100V;PA Phoenix Contact 12 路 无熔丝端子块, 80 V |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency | UL,cULus,VDE |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 4A | Voltage | 125V |
| Voltage Rating | 80 V | Number of Poles | 12Poles |
| Voltage - Supply | 125V | Current Rating (Max) | 4A |
| Voltage - Input (Min) | 160V | Voltage - Supply (Min) | 80V |
| Voltage - Protection Level (VP) (2416) | 2.50kV | ||
Mechanical
| Color | Green | Depth | 19.2 mm |
| Pitch | 0.098" (2.50mm) | Height | 11.75 mm |
| Weight | 0.243390 oz | Material | Nylon |
| Packaging | Bulk | Lead Style | 180 Deg |
| Wire Gauge | 20-28 AWG | Termination | Screwless - Push In |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 30.6 mm |
| Primary Material | MicroPCB | Size / Dimension | 31.60Lx19.20Wmm |
| Stripping Length | 8mm | Cable Termination | 180° |
| Pin Hole Diameter | 2.5mm | Termination Style | Spring Cage |
| Number of Contacts | 12 | Cross Hole Diameter | 0.14-0.50mm^2 |
| Number of Positions | 12 | Terminal Block Type | Plug, Female Sockets |
| Wire Entry Location | Front | Material - Insulation | PA |
| Number of Poles per Deck | 12 | Wire Gauge or Range - AWG | 26-20 |
| Number of Positions/Bay/Row | 12 | ||
Product Info
| Type | Spring Cage | Level | SingleLevel |
| Gender | F | Series | FK-MC |
| CAD Drawing | 3D CAD Model | Manufacturer | Combicon |
| Number of Lines | 12 | Number of Levels | 1 |
| Base Product Number | FK-MC0.5/12-ST-2.5 | Positions Per Level | 12 |
| Output Configuration | Free Hanging (In-Line) | ||
Documents & Media
Similar Parts
1881545
Phoenix Contact
Pluggable Terminal Blocks 12P 2.5mm 90 DEG Conn Shrouded Header HDR 12 POS 2.5mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 2.5MM Header for PCB plug connector MC 0,5/12-G-2,5 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;12Pole;2.5mmPitch;COMBICON

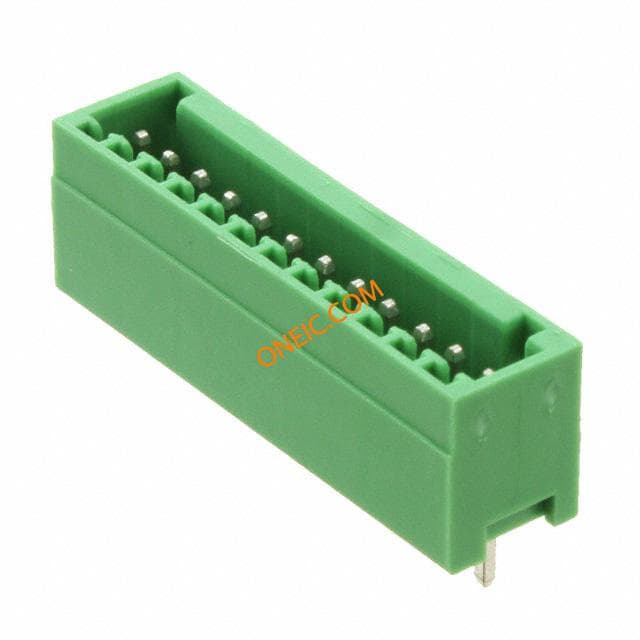

1881655
Phoenix Contact
Pluggable Terminal Blocks 12P 2.5mm 180 DEG Conn Shrouded Header HDR 12 POS 2.5mm Solder ST Thru-Hole TERM BLOCK HDR 12POS VERT 2.5MM Phoenix Contact MCV Series 2.5mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination Conn;TermBlk;PCB;Header;SnglLvl;Sldr;12Pole;2.5mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 2.5mm节距 12路 (1排) 直 印刷电路板接线端子块, 焊接端接 , 通孔

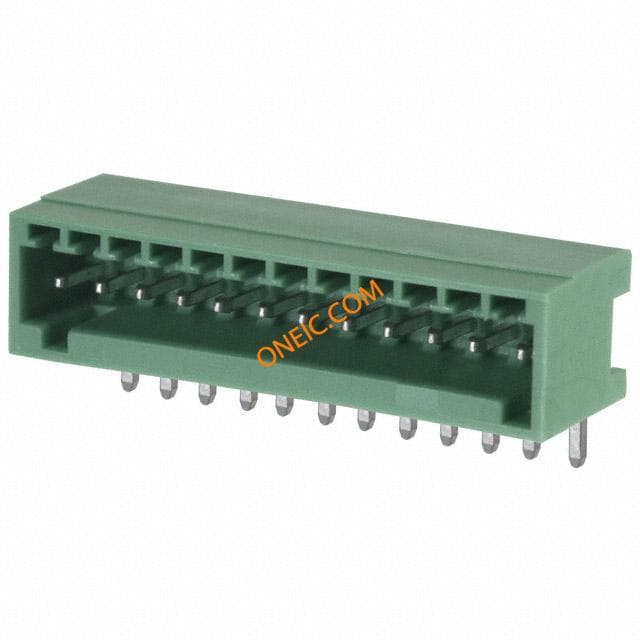

1945504
