点击放大查看
1875496
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMCV 1.5/ 9-G-3.81 Conn Wire to Board HDR 9 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 9-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMCV15/9-G-381 Phoenix Contact COMBICON IMCV 系列 3.81mm节距 9路 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 7.8 |
| Pitch | 0.150" (3.81mm) | Height | 14.5 |
| Weight | 0.107233 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | 锡 |
| Housing Material | Polyamide | Length - Overall | 35.08 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 9 |
| Number of Positions | 9 | Terminal Block Type | Header, Female Sockets |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | IMCV | Number of Levels | 1 |
| Positions Per Level | 9 | ||
Documents & Media
Similar Parts
1832808
Phoenix Contact
Pluggable Terminal Blocks MCVK 1.5/ 9-G-3.81 Conn Terminal Block F 9 POS 3.81mm Screw 8A TERM BLOCK PLUG Header for PCB plug connector MCVK 1,5/ 9-G-3,81 Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 9, Assembly: DIN rail MCVK15/9-G-381 Phoenix Contact MCVK 系列 绿色 印刷电路板管座 , 8A, 320 V

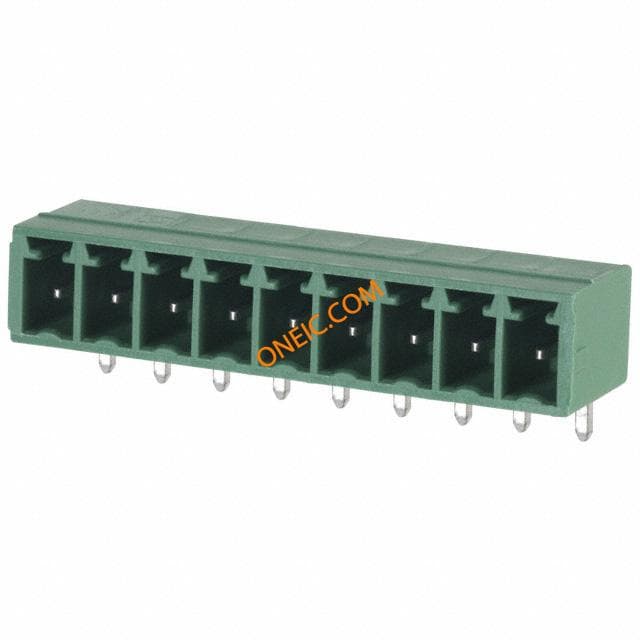

1803345
Phoenix Contact
Pluggable Terminal Blocks 3.81 9P HEADER 90DEG Conn Shrouded Header HDR 9 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 3.81MM Header for PCB plug connector MC 1,5/ 9-G-3,81 HEADER, RIGHT ANGLE, 3.81MM, 9WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;9Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; ways:9; 8A Phoenix Contact MINI COMBICON MC 系列 3.81mm 节距 9 路 公 绿色 直 PCB 管座, 通孔, 焊接端接

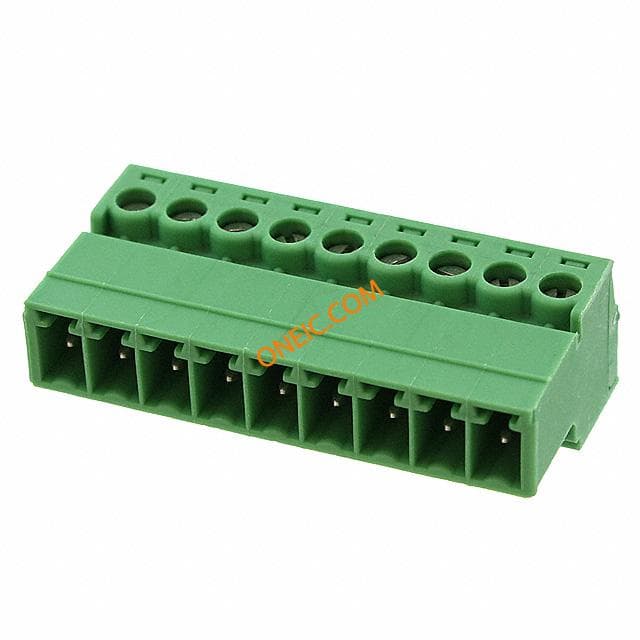

1857951
Phoenix Contact
Pluggable Terminal Blocks 3.81mm 9POS HEADER Conn Terminal Block F 9 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 9POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 9-ST-3,81 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn PLUGCOMPONENT,PITCH:3.81MM,POS9

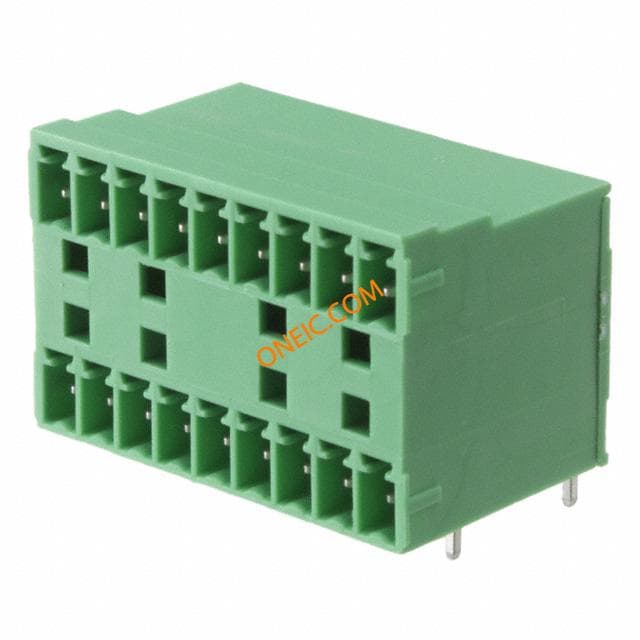

1843143
Phoenix Contact
Pluggable Terminal Blocks 3.81mm 9P HDR DBL LV Conn Wire to Board HDR 18 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 18POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 9-G1-3,81 MCD15/9-G1-381 Phoenix Contact COMBICON MCD 系列 3.81mm节距 9路 印刷电路板接线端子块, 焊接端接, 8A
1861798
Phoenix Contact
Pluggable Terminal Blocks MCO 1.5/ 9-GL-3.81 Conn Wire to Board HDR 9 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 3.81MM Header, Nominal current: 8 A, Nom. voltage: 125 V, Pitch: 3.81 mm, Number of positions: 9, Color: green, Assembly: Soldering MCO15/9-GL-381 Phoenix Contact COMBICON MCO 系列 9路 3.81mm节距 PCB 接线端子块 , 焊接端接

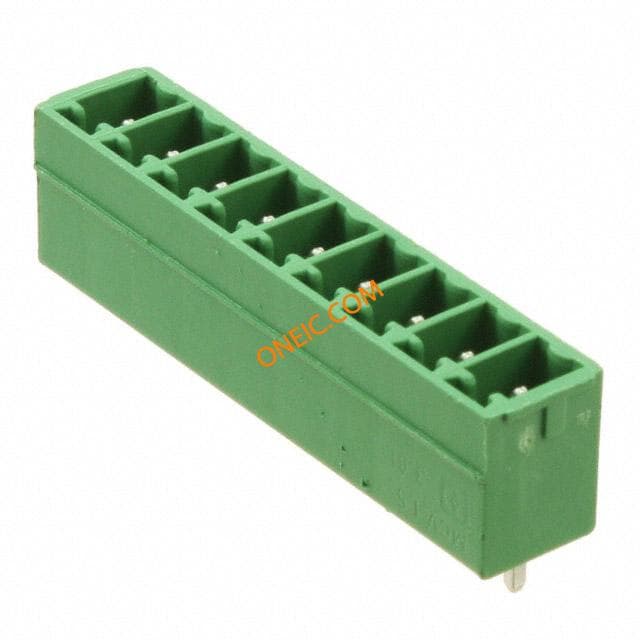

1803497
