1832808
| Manufacturer | |
| Description | Pluggable Terminal Blocks MCVK 1.5/ 9-G-3.81 Conn Terminal Block F 9 POS 3.81mm Screw 8A TERM BLOCK PLUG Header for PCB plug connector MCVK 1,5/ 9-G-3,81 Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 9, Assembly: DIN rail MCVK15/9-G-381 Phoenix Contact MCVK 系列 绿色 印刷电路板管座 , 8A, 320 V |
| Category |
Business
| Product | Pluggable Terminal Blocks | Tradename | COMBICON Control |
| Other Names | MCVK 1 5/ 9-G-3 81 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 8A | Voltage - UL | 300V |
| Current - IEC | 8A | Voltage - IEC | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 8A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | 绿色 | Depth | 26.7 |
| Pitch | 3.81mm | Height | 27.8 |
| Length | 1.405" (35.69mm) | Termination | Screw |
| Height (Max) | 1.051" (26.70mm) | Housing Color | Green |
| Mounting Type | DIN Rail | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 35.68 | Stripping Length | 7mm |
| Terminal - Width | 27.8mm | Termination Rows | 螺钉 |
| Termination Style | Plug Receptacles | Number of Contacts | 9 |
| Number of Positions | 9 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 14-30 AWG | Wire Gauge or Range - mm2 | 0.14-0.5mm² |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MCVK | Number of Levels | 1 |
Similar Parts
1875496
Phoenix Contact
Pluggable Terminal Blocks IMCV 1.5/ 9-G-3.81 Conn Wire to Board HDR 9 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 9-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMCV15/9-G-381 Phoenix Contact COMBICON IMCV 系列 3.81mm节距 9路 印刷电路板接线端子块, 焊接端接, 8A

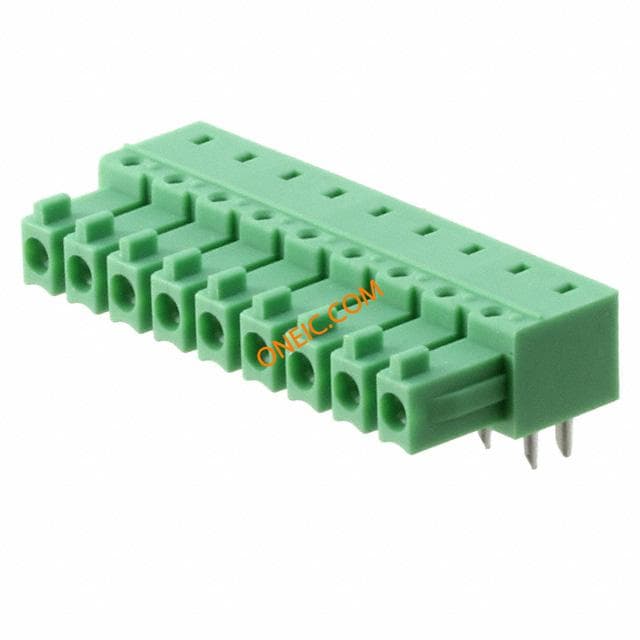

1862645
