1862700
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMC 1.5/15-G-3.81 Conn Wire to Board RCP 15 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 15POS R/A 3.81MM Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 15, mounting: Soldering IMC15/15-G-381 Phoenix Contact MINI COMBICON IMC 系列 3.81mm 节距 15 路 反相管座, 焊接端接 |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Voltage - Supply | 300V |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V |
Mechanical
| Color | Green | Depth | 5.3 mm |
| Pitch | 0.150" (3.81mm) | Height | 1.95 mm |
| Weight | 0.178486 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 10.2 mm |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 15 |
| Number of Positions | 15 | Terminal Block Type | Header, Female Sockets |
| Number of Poles per Deck | 15 | 2nd Connector Mounting Feature | 90°, Right Angle |
Product Info
| Type | Wire to Board | Gender | RCP |
| Series | IMC | Number of Levels | 1 |
| Positions Per Level | 15 | Output Configuration | Through Hole |
Documents & Media
Similar Parts
1830538
Phoenix Contact
Pluggable Terminal Blocks MCDV 1.5/15-G-3.81 Conn Shrouded Header HDR 30 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 30POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/15-G-3,81 MCDV15/15-G-381 Phoenix Contact COMBICON MCDV 系列 15路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
1843208
Phoenix Contact
Pluggable Terminal Blocks MCD 1.5/15-G1-3.81 Conn Wire to Board HDR 30 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 30POS R/A 3.81MM Header for PCB plug connector MCD 1,5/15-G1-3,81 MCD15/15-G1-381 Phoenix Contact COMBICON MCD 系列 3.81mm节距 15路 印刷电路板接线端子块, 焊接端接, 8A
1832866
Phoenix Contact
Pluggable Terminal Blocks MCVK 1 5/15-G-3 81 Conn Terminal Block F 15 POS 3.81mm Screw 8A PLUG TERM BLOCK 15POS 3.81MM PLUGCOMPONENT,PITCH:3.81MMPOS15

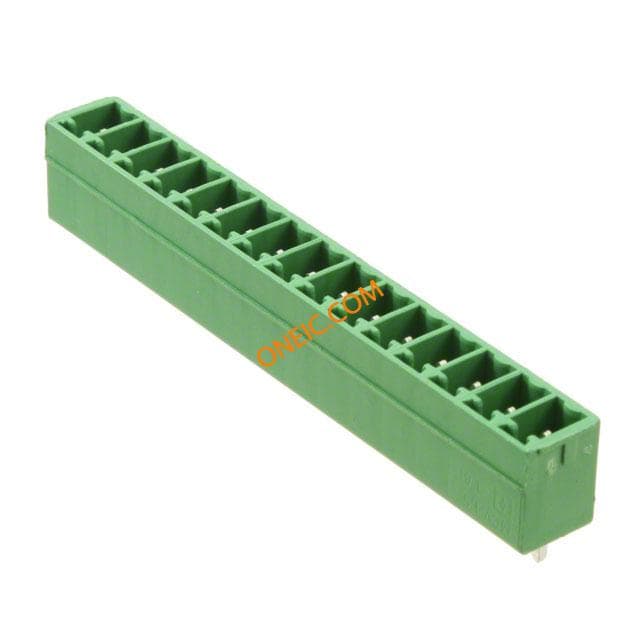

1803552
Phoenix Contact
Pluggable Terminal Blocks 3.81 15P HEADER 180D Conn Wire to Board HDR 15 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 15POS VERT 3.81MM Header for PCB plug connector MCV 1,5/15-G-3,81 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;15Pole;3.81mmPitch;COMBICON

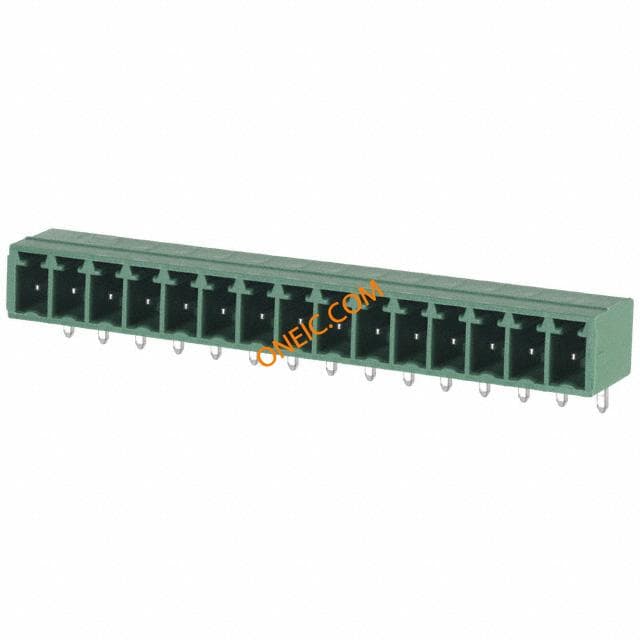

1803400
