1832866
| Manufacturer | |
| Description | Pluggable Terminal Blocks MCVK 1 5/15-G-3 81 Conn Terminal Block F 15 POS 3.81mm Screw 8A PLUG TERM BLOCK 15POS 3.81MM PLUGCOMPONENT,PITCH:3.81MMPOS15 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 8A | Voltage - UL | 300V |
| Current - IEC | 8A | Voltage - IEC | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 27.8 |
| Pitch | 3.81 mm | Height | 26.7 |
| Length | 2.305" (58.54mm) | Wire Gauge | 28 |
| Termination | Screw | Height (Max) | 1.051" (26.70mm) |
| Housing Color | Green | Mounting Type | DIN Rail |
| Contact Finish | Tin | Mounting Style | DIN Rail |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 58.54 | Stripping Length | 7mm |
| Terminal - Width | 27.8mm | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 15 | Number of Positions | 15 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 28-16 |
| Wire Gauge or Range - mm2 | 16 | ||
Product Info
| Type | Wire to Wire | Gender | F |
| Number of Levels | 1 | ||
Similar Parts
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL
$0.5168
Details

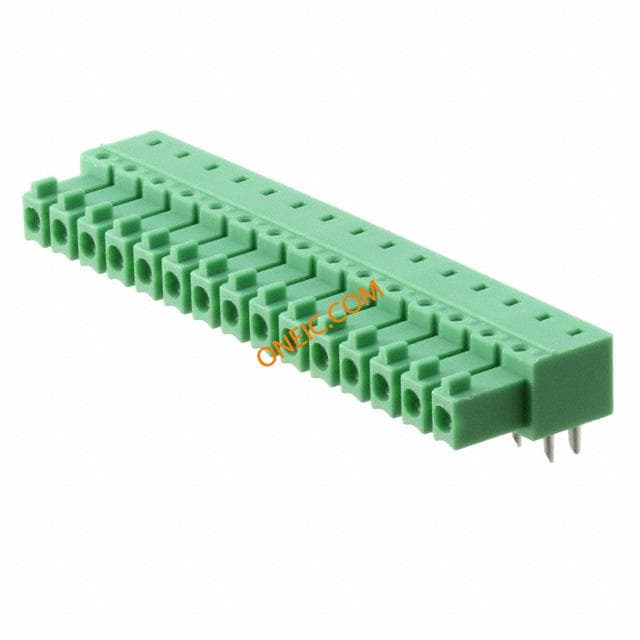

1862700
