点击放大查看

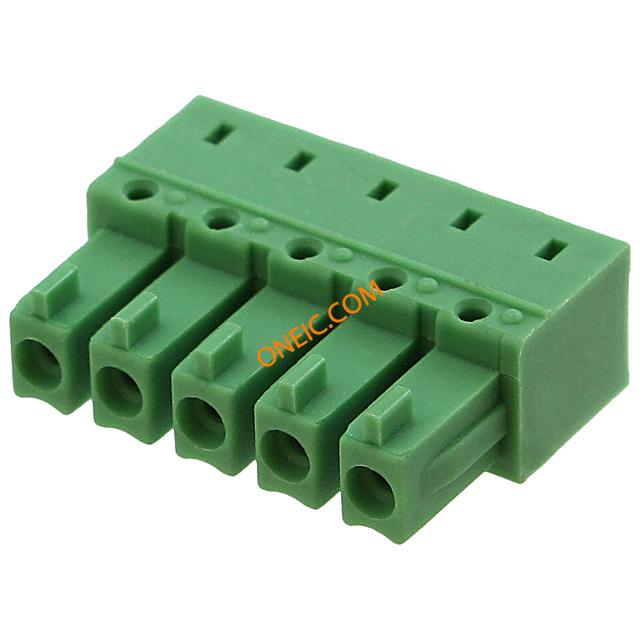

1862603
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック IMC 1.5/5-G-3.81 TERM BLOCK HDR 5POS R/A 3.81MM Pluggable Terminal Blocks IMC 1.5/5-G-3.81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMC15/5-G-381 Phoenix Contact COMBICON IMC 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
Mechanical
| Color | Green | Pitch | 0.150" (3.81mm) |
| Weight | 0.067726 oz | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole |
| Contact Finish | Tin | Contact Material | 锡 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 5 |
| Number of Positions | 5 | Terminal Block Type | Header, Female Sockets |
Product Info
| Type | Wire to Board | Series | IMC |
| Number of Levels | 1 | Positions Per Level | 5 |
Documents & Media
Similar Parts
1843101
Phoenix Contact
Pluggable Terminal Blocks 3.81mm 5P HDR DBL LV Conn Shrouded Header HDR 10 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 5-G1-3,81 MCD15/5-G1-381 Phoenix Contact COMBICON MCD 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
1857919
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/ 5-ST-3 81 3.81mm 5P HEADER Conn Terminal Block F 5 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 5POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 5-ST-3,81 PLUGCOMPONENT,PITCH:3.81MM,POS5
1832769
Phoenix Contact
Pluggable Terminal Blocks MCVK 1.5/ 5-G-3.81 Conn Terminal Block F 5 POS 3.81mm Screw 8A PLUG TERM BLOCK 5POS 3.81MM MCVK15/5-G-381 Phoenix Contact MCVK 系列 绿色 印刷电路板管座 , 8A, 320 V
1860870
Phoenix Contact
Pluggable Terminal Blocks MC 1 5/ 5-G-3 81 AU TERM BLOCK HDR 5POS R/A 3.81MM MC15/5-G-381AU
1830431
Phoenix Contact
Pluggable Terminal Blocks MCDV 1 5/ 5-G-3 81 Conn Wire to Board HDR 10 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/ 5-G-3,81 ELECTRONICPART
1908790
Phoenix Contact
Fixed Terminal Blocks 3.81 5P R/A BLK Conn Shrouded Header HDR 5 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 3.81MM
1861756
Phoenix Contact
プラグ着脱可能ターミナルブロック MCO 1 5/ 5-GL-3 81 Conn Shrouded Header HDR 5 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 3.81MM Pluggable Terminal Blocks MCO 1 5/ 5-GL-3 81 MCO15/5-GL-381 Phoenix Contact COMBICON MCO 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接

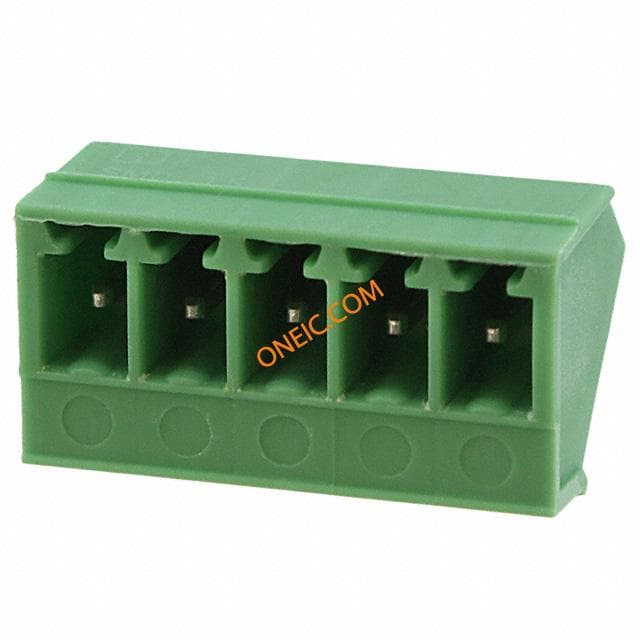

1827305
Phoenix Contact
プラグ着脱可能ターミナルブロック 3.81 5P HEADER 45DEG Conn Shrouded Header HDR 5 POS 3.81mm Solder Thru-Hole TERM BLOCK HDR 5POS 45DEG 3.81MM Header for PCB plug connector SMC 1,5/ 5-G-3,81 Pluggable Terminal Blocks 3.81 5P HEADER 45DEG SMC15/5-G-381

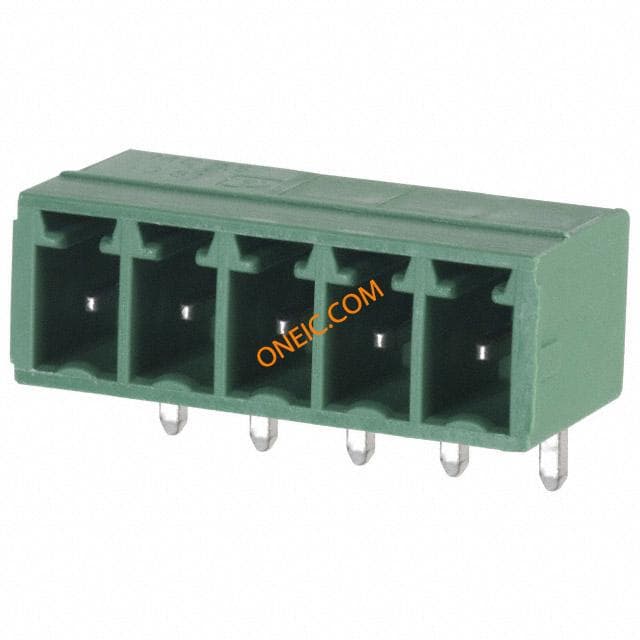

1803303
Phoenix Contact
Pluggable Terminal Blocks 3.81 5P HEADER 90DEG Conn Shrouded Header HDR 5 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 3.81MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;5Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; THT; 8A Phoenix Contact COMBICON MC 系列 3.81mm节距 5路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A

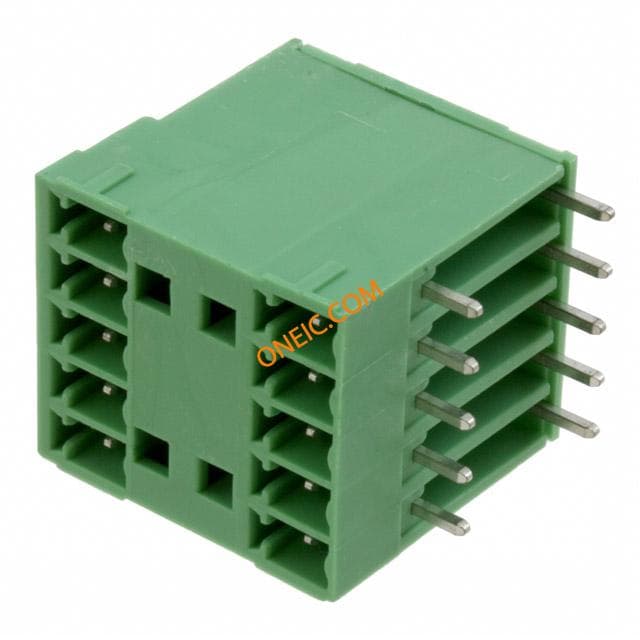

1829989
Phoenix Contact
Pluggable Terminal Blocks MCD 1 5/ 5-G-3 81 Conn Wire to Board HDR 10 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 5-G-3,81 MCD15/5-G-381 Phoenix Contact COMBICON MCD 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
1861675
Phoenix Contact
Pluggable Terminal Blocks MCO 1.5/ 5-GR-3.81 Conn Shrouded Header HDR 5 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 3.81MM Header for PCB plug connector MCO 1,5/ 5-GR-3,81 MCO15/5-GR-381 Phoenix Contact COMBICON MCO 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接

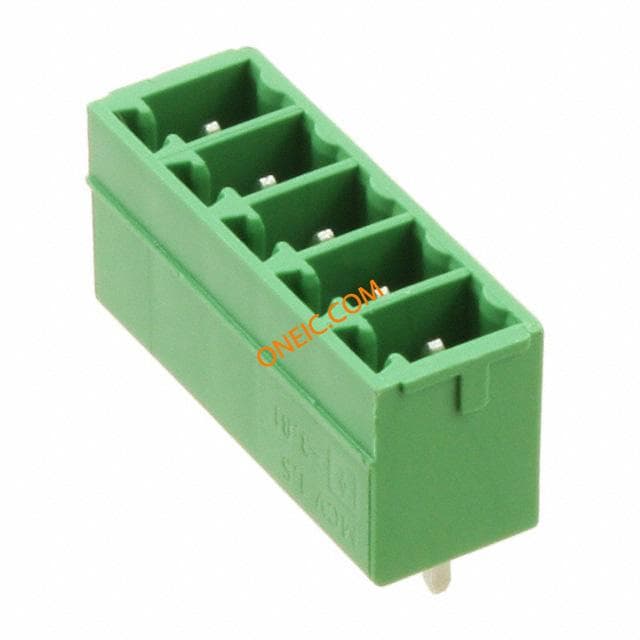

1803455
