1843101
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81mm 5P HDR DBL LV Conn Shrouded Header HDR 10 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 5-G1-3,81 MCD15/5-G1-381 Phoenix Contact COMBICON MCD 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 5-G1-3,81 MCD | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 21.9 |
| Pitch | 3.81 mm | Height | 22.7 |
| Weight | 4.127054 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | 锡 | Housing Material | Polyamide |
| Length - Overall | 20.44 | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 5 | Number of Positions | 10 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MCD | Number of Levels | 2 |
| Positions Per Level | 5 | ||
Similar Parts
1862603
Phoenix Contact
プラグ着脱可能ターミナルブロック IMC 1.5/5-G-3.81 TERM BLOCK HDR 5POS R/A 3.81MM Pluggable Terminal Blocks IMC 1.5/5-G-3.81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMC15/5-G-381 Phoenix Contact COMBICON IMC 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A

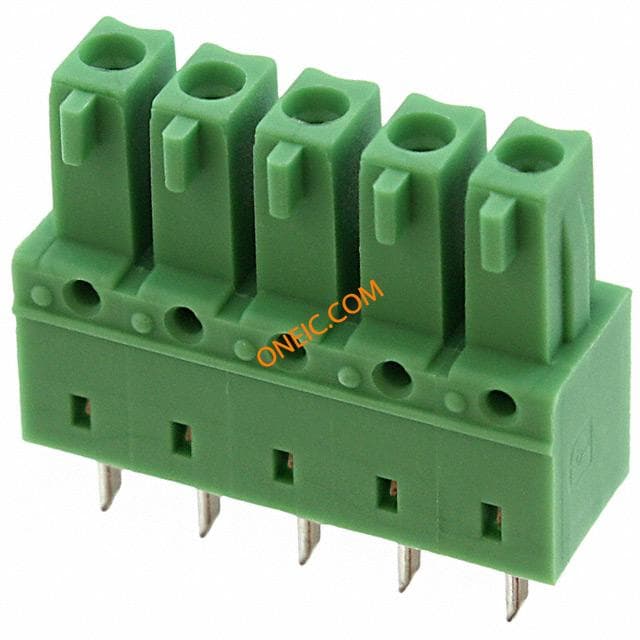

1875454
