1830729
| Manufacturer | |
| Description | Pluggable Terminal Blocks MCV 1 5/15-GF-3 81 Conn Wire to Board HDR 15 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 15POS VERT 3.81MM Header for PCB plug connector MCV 1,5/15-GF-3,81 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 15, Assembly: Soldering MCV15/15-GF-381 Phoenix Contact COMBICON MCV 系列 15路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Tradename | COMBICON Control |
| Other Names | MCV1,5/15-GF-3,81 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Voltage - Supply | 300V |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V |
| Voltage - Supply (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 7.25 mm |
| Pitch | 0.150" (3.81mm) | Height | 9.2 mm |
| Weight | 4 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | 锡 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 67.54 mm | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 15 | Number of Positions | 15 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Number of Poles per Deck | 15 |
| 2nd Connector Mounting Feature | Vertical | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MCV | Features | Flange |
| Main Purpose | Flange | Number of Levels | 1 |
| Positions Per Level | 15 | Output Configuration | Through Hole |
Documents & Media
PDF Document
Similar Parts
1897678
Phoenix Contact
Pluggable Terminal Blocks QC 0 5/15-STF-3 81 Conn Terminal Block F 15 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 15POS STR 3.81MM QC05/15-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 15 路 母 绿色 插头, IDC端接
$92.8200
Details

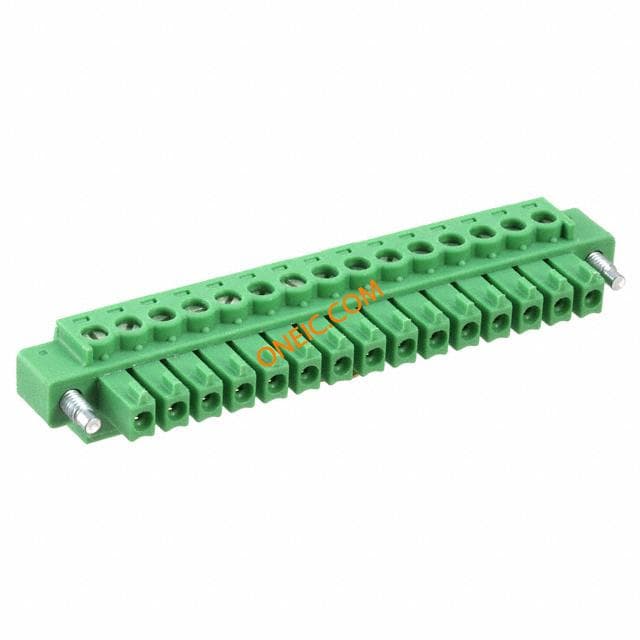

1827839
