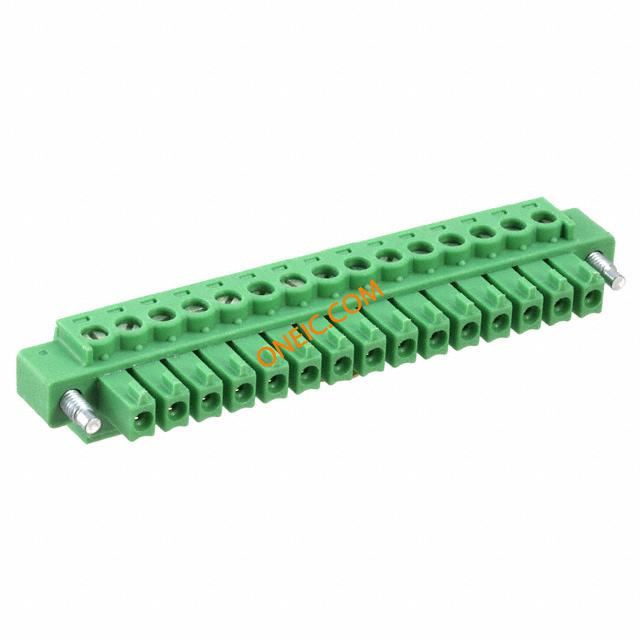

1827839
| Manufacturer | |
| Description | Pluggable Terminal Blocks MC 1 5/15-STF-3 81 Conn Terminal Block F 15 POS 3.81mm Screw RA Panel Mount 8A TERM BLOCK PLUG 15POS STR 3.81MM Printed-circuit board connector MC 1,5/15-STF-3,81 PLUGCOMPONENT,PITCH:3.81MM,POS15 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 16.1 |
| Pitch | 0.150" (3.81mm) | Height | 11.1 |
| Weight | 3.492122 oz | Packaging | Bulk |
| Wire Gauge | 14-30 AWG | Termination | Screw |
| Mounting Type | Panel Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 67.54 |
| Termination Style | Screw | Number of Contacts | 15 |
| Number of Positions | 15 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 28-16 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MC | Features | Flange |
| Number of Levels | 1 | Positions Per Level | 15 |
