1827871
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81mm 3P HDR W/FLG Conn Shrouded Header HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM Header for PCB plug connector MC 1,5/ 3-GF-3,81 MC15/3-GF-381 Phoenix Contact COMBICON MC 系列 3路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 250 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 9.2 |
| Pitch | 0.150" (3.81mm) | Height | 7.25 |
| Weight | 4 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | 锡 |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 21.82 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 3 |
| Number of Positions | 3 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MC | Features | Flange |
| Number of Levels | 1 | Positions Per Level | 3 |
Documents & Media
PDF Document
Similar Parts
1897555
Phoenix Contact
Pluggable Terminal Blocks QC 0.5/ 3-STF-3.81 Conn Terminal Block F 3 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 3POS STR 3.81MM Printed-circuit board connector QC 0,5/ 3-STF-3,81 QC05/3-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 3 路 母 绿色 插头, IDC端接
$20.2640
Details

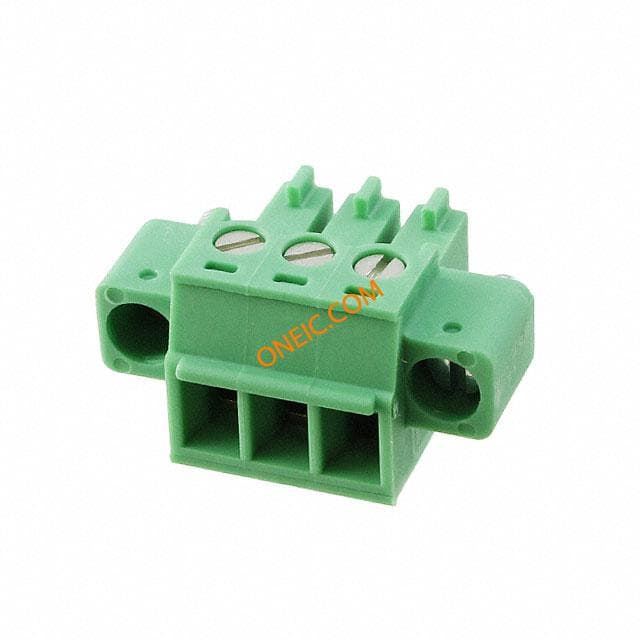

1827716
