1827716
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81mm 3P PLG W/FLG Conn Terminal Block F 3 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 3POS STR 3.81MM Printed-circuit board connector MC 1,5/ 3-STF-3,81 Conn;TermBlk;PCB;Plug;3;3.81mm;28-16AWG;8A;160V Phoenix Contact MINI COMBICON MC 系列 3.81mm 节距 3 路 母 绿色 直 插头, 电缆安装, 螺钉端接 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 3-STF-3.81 MC | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | UL,cULus,CSA,VDE | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Number of Poles | 3Poles |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V |
Mechanical
| Color | Green | Depth | 11.1mm |
| Pitch | 0.150" (3.81mm) | Width | 16.1mm |
| Height | 11.1 | Length | 21.82mm |
| Weight | 3.492122 oz | Material | 聚酰胺 |
| Packaging | Bulk | Wire Gauge | 14-30 AWG |
| Orientation | 直 | Termination | Screw |
| Mounting Type | Cable Mount | Connector Type | 母座 |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 21.82 | Primary Material | PCB |
| Termination Rows | 螺钉 | Pin Hole Diameter | 3.81mm |
| Termination Style | Screw | Number of Contacts | 3 |
| Number of Positions | 3 | Terminal Block Type | Plug, Female Sockets |
| Wire Entry Location | Front | Wire Gauge or Range - AWG | 28-16 |
Product Info
| Type | Terminal Block | Level | SingleLevel |
| Gender | F | Series | MC |
| Features | Flange | Manufacturer | MCSeries |
| Number of Levels | 1 | Base Product Number | MC1,5/3-STF-3,81 |
| Positions Per Level | 3 | ||
Documents & Media
Similar Parts
1763708
Phoenix Contact
Pluggable Terminal Blocks MC 1.5/ 3-GF-3.81 BK Conn Wire to Board HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM MC15/3-GF-381BK
1879463
Phoenix Contact
Pluggable Terminal Blocks DFK-MC 1.5/ 3-GF- 3,81 BK Conn Shrouded Header HDR 3 POS 3.81mm TERM BLOCK DFK-MC15/3-GF-381BK

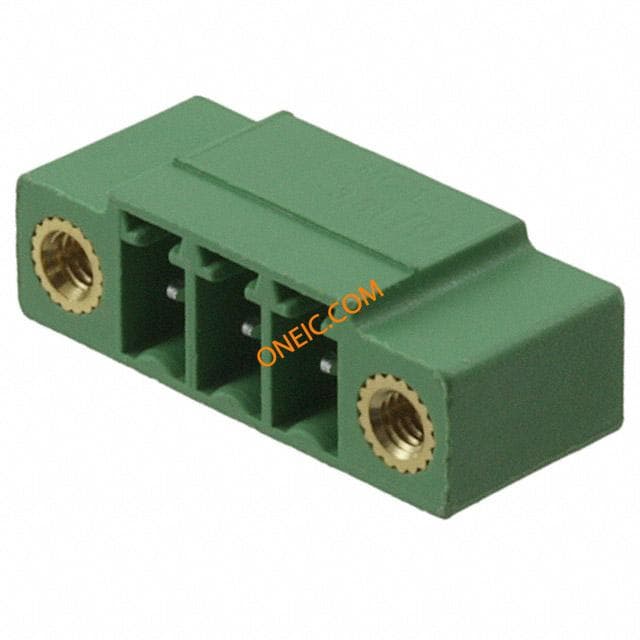

1827871
Phoenix Contact
Pluggable Terminal Blocks 3.81mm 3P HDR W/FLG Conn Shrouded Header HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM Header for PCB plug connector MC 1,5/ 3-GF-3,81 MC15/3-GF-381 Phoenix Contact COMBICON MC 系列 3路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A

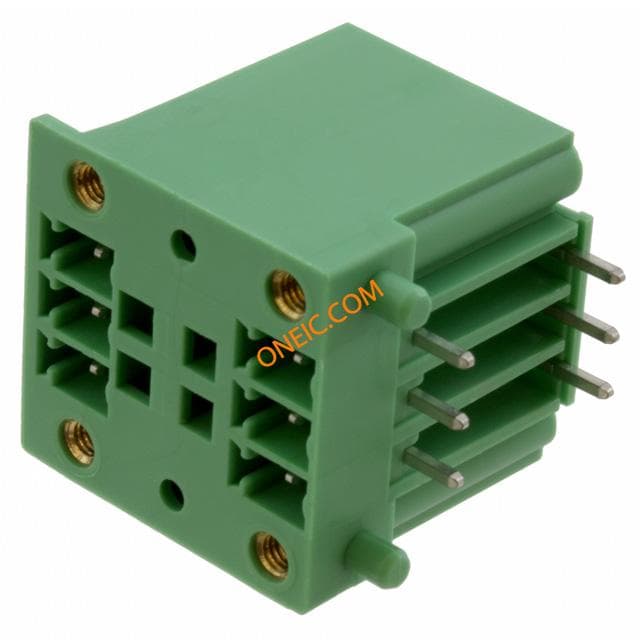

1842924
Phoenix Contact
Pluggable Terminal Blocks MCD 1.5/ 3-G1F-3.8 Conn Wire to Board HDR 6 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 3-G1F-3,81 MCD15/3-G1F-381 Phoenix Contact COMBICON MCD 系列 3路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A

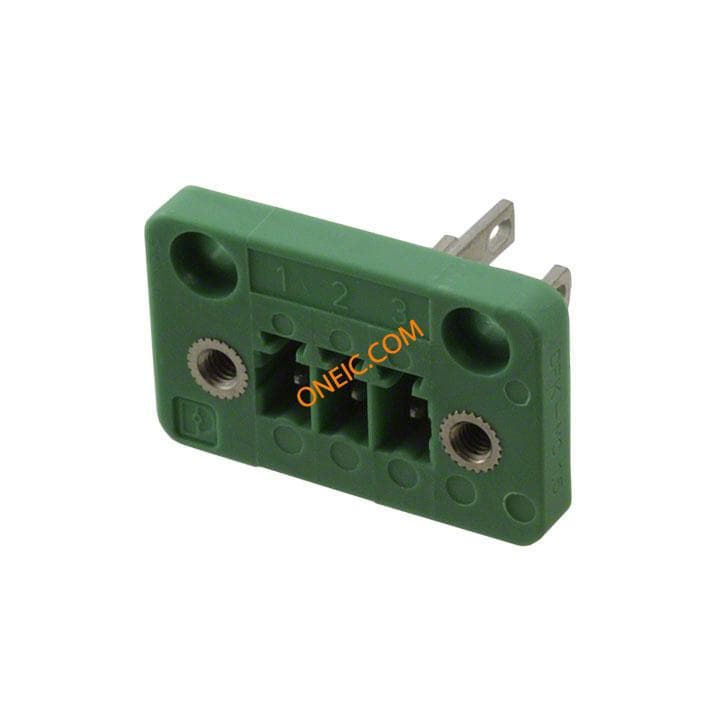

1829358
