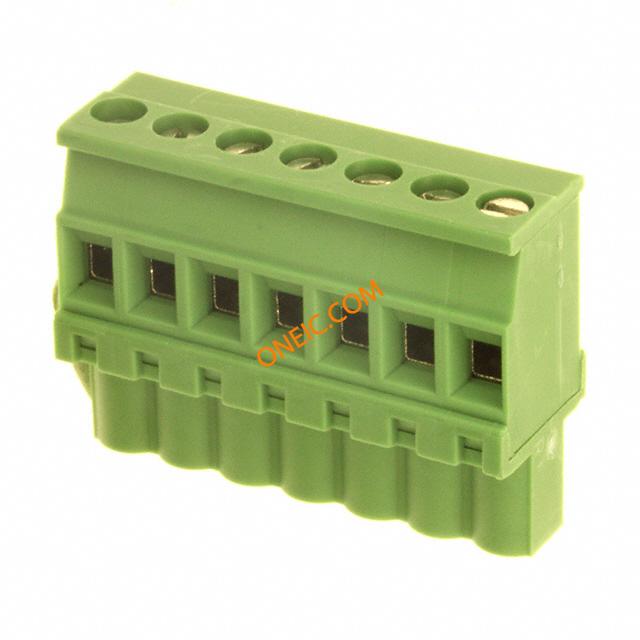

1792579
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック 5.00 7P PLUG 270D Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/ 7-ST Pluggable Terminal Blocks 5.00 7P PLUG 270D Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA |
| Category |
Business
| Product | Pluggable Terminal Blocks | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12.6 |
| Pitch | 0.197" (5.00mm) | Height | 26 |
| Length | 7 mm | Weight | 2.646 lbs |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Termination | Screw | Mounting Type | Cable Mount |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 270° | Housing Material | Polyamide |
| Length - Overall | 35 | Termination Style | Through Hole |
| Number of Contacts | 7 | Number of Positions | 7 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Non-Wire Side) | Industry Aliases | MVSTBW 2, 5/ 7-ST |
| Number of Levels | 1 | Positions Per Level | 7 |
