点击放大查看
1762745
| Manufacturer | |
| Description | Pluggable Terminal Blocks MDSTB 2 5/ 7-G1 Conn Shrouded Header HDR 14 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 14POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 7-G1 MDSTB25/7-G1 Phoenix Contact COMBICON MDSTB 系列 7路 5mm节距 PCB 接线端子块 , 焊接端接, 10A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 22 |
| Pitch | 5 mm | Height | 28.5 |
| Weight | 1.323 lbs | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | 锡 | Housing Material | Polyamide |
| Length - Overall | 37 | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 7 | Number of Positions | 14 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MDSTB | Number of Levels | 2 |
| Positions Per Level | 7 | ||
Documents & Media
Similar Parts
1752551
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 7-ST AU TERM BLOCK PLUG 7POS STR 5MM Misc Products MSTB25/7-STAU
1779466
Phoenix Contact
プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 7-ST Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 7-ST Pluggable Terminal Blocks FRONT-MSTB 2 5/ 7-ST FRONT-MSTB25/7-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 7 路 母 绿色 插头, 螺钉端接
1792579
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.00 7P PLUG 270D Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/ 7-ST Pluggable Terminal Blocks 5.00 7P PLUG 270D Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA
1768817
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.00 7P PLUG 45DEG Conn Terminal Block F 7 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 7POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/ 7-ST Pluggable Terminal Blocks 5.00 7P PLUG 45DEG Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA
1792061
Phoenix Contact
Pluggable Terminal Blocks 5.00 7P PLUG 90DEG Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS 90DEG 5MM Printed-circuit board connector MVSTBR 2,5/ 7-ST Conn Terminal Blocks F 7 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA
1754546
Phoenix Contact
Pluggable Terminal Blocks 5.00 7P PLUG 180DEG Conn Terminal Block F 7 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 7POS STR 5MM Printed-circuit board connector MSTB 2,5/ 7-ST Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 7 路 母 绿色 直 插头, 插入式, 螺钉端接

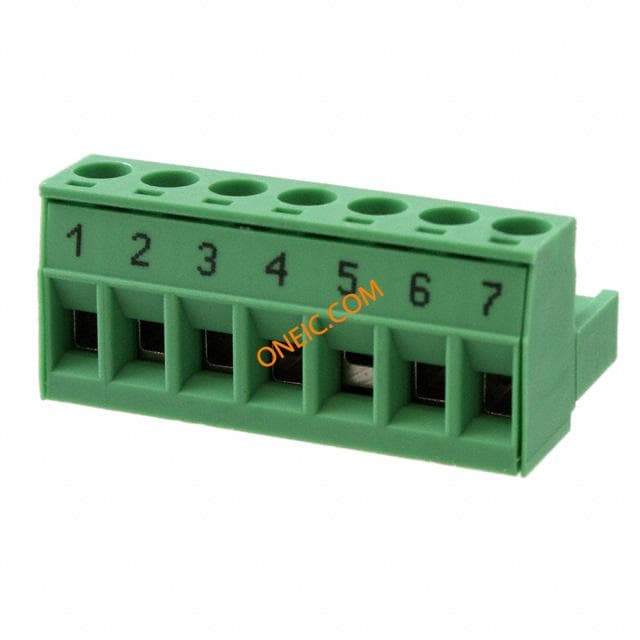

1876398
