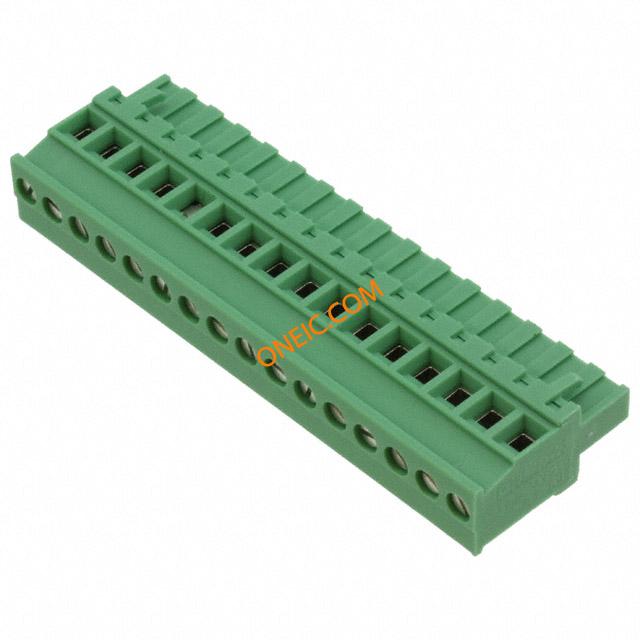

1792388
| Manufacturer | |
| Description | Pluggable Terminal Blocks 16P 5.08mm Conn Terminal Block F 16 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 16POS 5.08MM Printed-circuit board connector MVSTBR 2,5/16-ST-5,08 Conn;TermBlk;Plug;PCB;10;5.08mm;24-12AWG;12A;250V |
| Category |
Business
| Product | Plugs | Lead Time | 28 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12.6 |
| Pitch | 0.200" (5.08mm) | Height | 26 |
| Length | 7 mm | Weight | 4.656163 oz |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Termination | Screw | Mounting Type | Cable Mount |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 90° | Housing Material | Polyamide |
| Length - Overall | 81.28 | Termination Style | Screw |
| Number of Contacts | 16 | Number of Positions | 16 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MVSTBR | Features | Retention Latches (Wire Side) |
| Industry Aliases | MVSTBR 2, 5/16-ST-5, 08 | Number of Levels | 1 |
| Base Product Number | MVSTBR2,5/16-ST-5,08 | Positions Per Level | 16 |
