点击放大查看

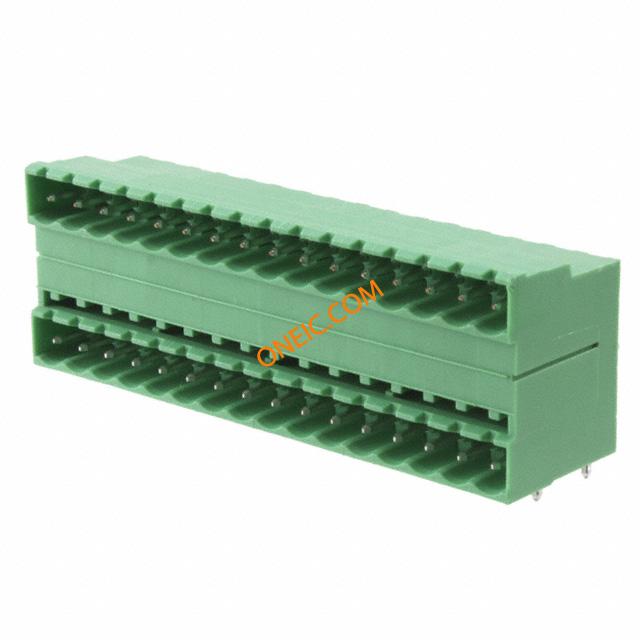

1762509
| Manufacturer | |
| Description | Pluggable Terminal Blocks DBL LEVEL HDR 5.08MM Conn Shrouded Header HDR 32 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 32POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/16-G1-5,08 MDSTB25/16-G1-508 Phoenix Contact COMBICON MDSTB 系列 16路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 22 |
| Pitch | 0.200" (5.08mm) | Height | 28.5 |
| Weight | 5.679108 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | 锡 |
| Housing Material | Polyamide | Length - Overall | 83.28 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 32 |
| Number of Positions | 32 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MDSTB | Industry Aliases | MDSTB 2, 5/16-G1-5, 08 |
| Number of Levels | 2 | Positions Per Level | 16 |
