点击放大查看

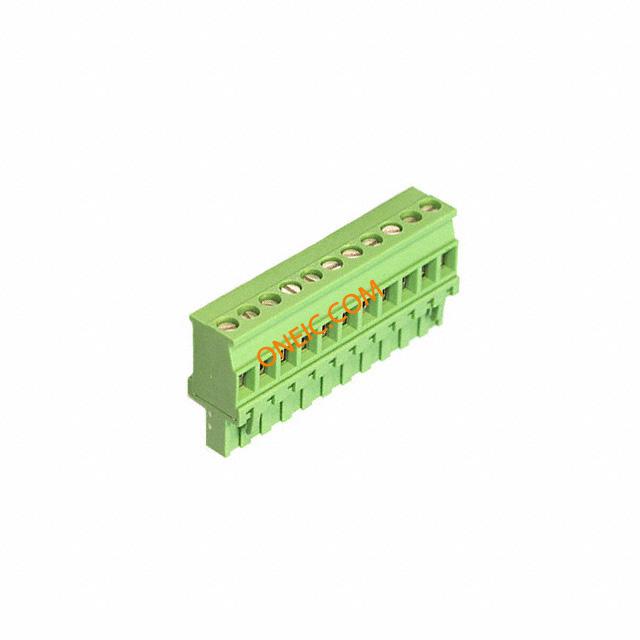

1792100
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.00 11P PLUG 90DEG Conn Terminal Block F 11 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 11POS 90DEG 5MM Printed-circuit board connector MVSTBR 2,5/11-ST Conn;TermBlk;Plug;Screw;11;5mm;30-12AWG;10A;300V;PA |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12.6 |
| Pitch | 0.197" (5.00mm) | Height | 26 |
| Weight | 1.764 lbs | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 90° |
| Housing Material | Polyamide | Length - Overall | 55 |
| Termination Style | Screw | Number of Contacts | 11 |
| Number of Positions | 11 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MVSTBR | Features | Retention Latches (Wire Side) |
| Number of Levels | 1 | Positions Per Level | 11 |
