1753615
| Manufacturer | |
| Description | Pluggable Terminal Blocks 11P 5mm 180DEG Conn Shrouded Header HDR 11 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 11POS VERT 5MM Header for PCB plug connector MSTBV 2,5/11-G Conn;TermBlk;PCB;Header;SnglLvl;Sldr;11Pole;5mmPitch;COMBICON |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 12A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 11Poles |
| Current - Output | 12A | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | Voltage - Protection Level (VP) (2416) | 4kV |
Mechanical
| Color | Green | Depth | 8.6 |
| Pitch | 0.197" (5.00mm) | Height | 12 |
| Weight | 3.307 lbs | Packaging | Bulk |
| Termination | Solder | Hole Diameter | 1.4mm |
| Housing Color | Green | Mounting Type | Straight |
| Contact Finish | Tin | Mounting Style | SolderMount |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 55 | Primary Material | PCB |
| Pin Hole Diameter | 5mm | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 11 |
| Number of Positions | 11 | Terminal Block Type | Header, Male Pins, Shrouded (2 Side) |
| Material - Insulation | PBT | Pin Size - Below Flange | 1x1mm |
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MSTBV |
| Manufacturer | COMBICON | Industry Aliases | MSTBV 2, 5/11-G |
| Number of Levels | 1 | Base Product Number | MSTBV2,5/11-G |
| Positions Per Level | 11 | ||
Documents & Media
Similar Parts
1792618
Phoenix Contact
Pluggable Terminal Blocks 11P 5mm 270DEG Conn Terminal Block F 11 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 11POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/11-ST Conn Terminal Blocks F 11 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;11;5mm;30-12AWG;10A;300V;PA
1754627
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.00 11P PLUG 180DEG Conn Terminal Block F 11 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 11POS STR 5MM Printed-circuit board connector MSTB 2,5/11-ST Pluggable Terminal Blocks 5.00 11P PLUG 180DEG Conn;TermBlk;Plug;Screw;11;5mm;30-12AWG;10A;300V;PA
1910445
Phoenix Contact
Pluggable Terminal Blocks FKC 2 5/11-ST Conn Terminal Block F 11 POS 5mm ST Cable Mount 12A TERM BLOCK PLUG 11POS STR 5MM Printed-circuit board connector FKC 2,5/11-ST Conn;TermBlk;PCB;Plug;Springcage;12;5mm;24-12AWG;Green;12A;250V

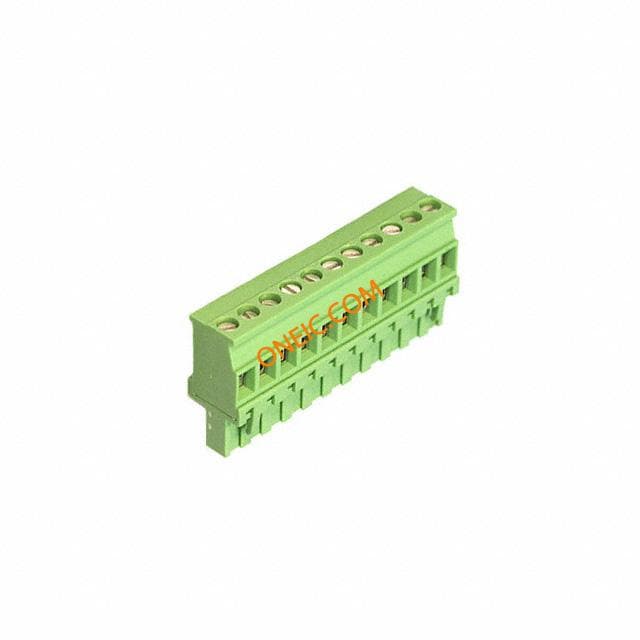

1792100
