点击放大查看
1786048
| Manufacturer | |
| Description | Pluggable Terminal Blocks ICV 2 5/12-G-5 08 5.08mm 12P PLUG Conn Wire to Board HDR 12 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,12way ICV25/12-G-508 Phoenix Contact COMBICON ICV 系列 5.08mm节距 12路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔 |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 12A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 10.2 mm |
| Pitch | 0.200" (5.08mm) | Height | 19 mm |
| Weight | 5.820204 oz | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Housing Color | Green | Mounting Type | Straight |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Tin Plated |
| Housing Material | Polyamide | Length - Overall | 62.96 mm |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 12 |
| Number of Positions | 12 | Terminal Block Type | Header, Female Sockets |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | ICV 2.5 | Features | Retention Latches |
| CAD Drawing | 3D CAD Model | Number of Levels | 1 |
| Positions Per Level | 12 | ||
Documents & Media
Similar Parts
1735785
Phoenix Contact
Pluggable Terminal Blocks MSTBW 2 5/12-G-5 08 5.08mm 12P R/A HDR Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/12-G-5,08 MSTBW25/12-G-508 Phoenix Contact COMBICON MSTBW 系列 12路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1769560
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.08 12P HEADER 45DG Conn Shrouded Header HDR 12 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 12POS 5.08MM Pluggable Terminal Blocks 5.08 12P HEADER 45DG Conn;TermBlk;PCB;Header;SnglLvl;45DegAngl;Sldr;12Pole;5.08mmPitch;COMBICON
1859616
Phoenix Contact
プラグ着脱可能ターミナルブロック 12P 5.08mm 180 DEG Conn Shrouded Header HDR 12 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/12-G-5,08 Pluggable Terminal Blocks 12P 5.08mm 180 DEG Header, Nominal current: 12 A, Nom. voltage: 200 V, Pitch: 5.08 mm, Number of positions: 12, Assembly: Press-in Conn;TermBlk;PCB;Header;SnglLvl;Sldr;12Pole;5.08mmPitch;COMBICON

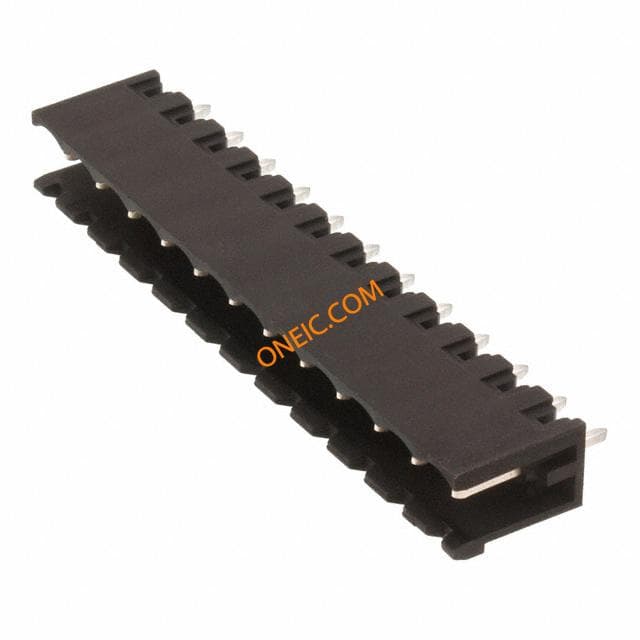

1746981
Phoenix Contact
Pluggable Terminal Blocks MSTBV 2.5/12-G-5.0 Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM MSTBV25/12-G-508BK
1758115
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P HEADER 180D Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM Header for PCB plug connector MSTBV 2,5/12-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;12Pole;5.08mmPitch;COMBICON
1767478
Phoenix Contact
Pluggable Terminal Blocks SMSTBA 2 5/12-G-5 08 Conn Shrouded Header HDR 12 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 12POS 5.08MM Header for PCB plug connector SMSTBA 2,5/12-G-5,08 HEADER,PITCH:5.08MM,POS12
1757349
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P HEADER 90DG TERM BLOCK HDR 12POS R/A 5.08MM MSTBA 2,5/12-G-5,08 Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole HEADER, RIGHT ANGLE, 5.08MM, 12WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;12Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 12路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1762703
Phoenix Contact
Pluggable Terminal Blocks 12P HEADER Conn Shrouded Header HDR 24 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 24POS R/A 5.08MM Header MDSTB 2,5/12-G1-5,08 MDSTB25/12-G1-508 Phoenix Contact COMBICON MDSTB 系列 12路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A
1759114
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P HEADER 90DG Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/12-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;12Pole;5.08mmPitch;COMBICON
1755833
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P HEADER 180D Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM Conn;TermBlk;PCB;Header;SnglLvl;Sldr;12Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBVA 系列 5.08mm节距 12路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A
1786271
Phoenix Contact
Pluggable Terminal Blocks 12P 5.08MM 180 DEG Conn Terminal Block M 12 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 12POS STR 5.08MM Non-Fused Terminal Block Cable Mount 12 Way, Screw Down, 250V Conn;TermBlk;PCB;Plug;Screw;12;5.08mm;24-12AWG;Green;12A;250V;M3 Phoenix Contact 12 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V

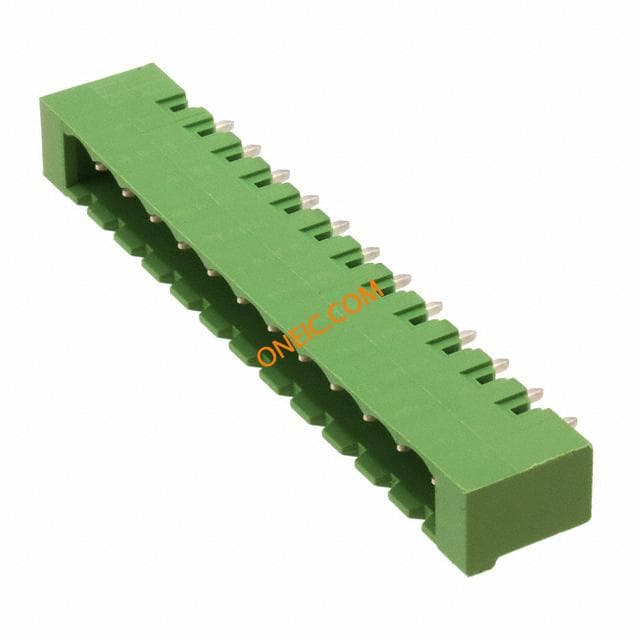

1746198
