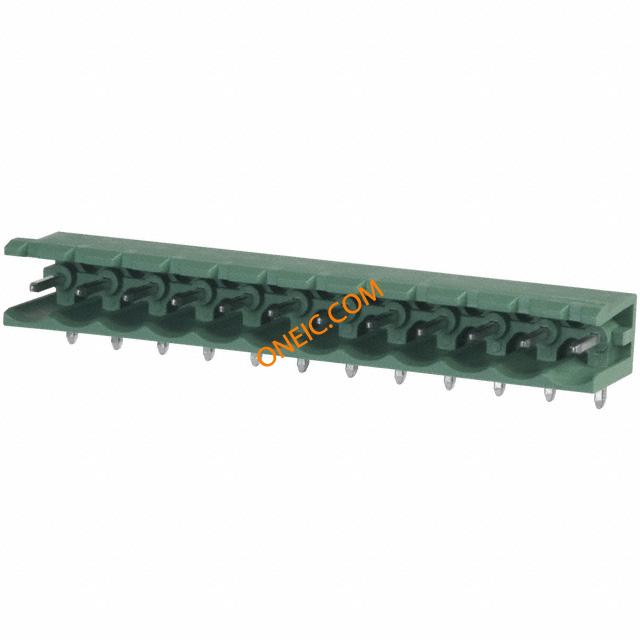

1759114
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08 12P HEADER 90DG Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/12-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;12Pole;5.08mmPitch;COMBICON |
| Category |
Business
| Product | Headers | Lead Time | 28 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | EN-VDE | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 12Poles |
| Current - Output | 12A | Voltage - Nominal | 250V |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 320V |
| Voltage - Protection Level (VP) (2416) | 4kV | ||
Mechanical
| Color | Green | Depth | 12 |
| Pitch | 0.200" (5.08mm) | Height | 8.6 |
| Weight | 5.361642 oz | Packaging | Bulk |
| Termination | Solder | Hole Diameter | 1.4mm |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Mounting Style | SolderMount |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 40.64 | Primary Material | PCB |
| Size / Dimension | 55.88mm | Pin Hole Diameter | 5.08mm |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 12 | Number of Positions | 12 |
| Terminal Block Type | Header, Male Pins, Shrouded (2 Side) | Material - Insulation | PBT |
| Pin Size - Below Flange | 1x1mm | ||
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MSTB |
| Features | 90Deg | Manufacturer | COMBICON |
| Industry Aliases | MSTB 2, 5/12-G-5, 08 | Number of Levels | 1 |
| Base Product Number | MSTB2,5/12-G-5,08 | Positions Per Level | 12 |
