1507777
| Manufacturer | |
| Description | Circular Metric Connectors SACC-M12-FSB-5-CON PG9 SH AU Conn M12 Circular M/F 5/5 POS ST Cable Mount 10 Terminal 2 Port CONN M12 5POS SOCKET Bus system plug connector SACC-M12FSB-5CON-PG9 SH AU SACC-M12FSB-5CONPG9SHAU Bus system conn,female,straight,5W,M12 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | PLUSCON Field | Product Category | Circular Metric Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60V | Current Rating (Max) | 4A |
Mechanical
| Depth | 56 | Height | 10 |
| Weight | 1.817667 oz | Diameter | 20 |
| Packaging | Bulk | Cable Exit | No |
| Orientation | B | Shell Style | Plug |
| Termination | Screw | Contact Type | (5/5)Signal |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Screw |
| Contact Material | Bronze | Length - Overall | 20 |
| Termination Style | Screw | 1st Contact Gender | M/F |
| Number of Contacts | 5/5 | Number of Positions | 5 |
| Shell Size - Insert | M12-5 | Shell Material, Finish | Brass, Nickel Plated |
Product Info
| Type | M12 Circular | Gender | RCP/PL |
| Series | M12 | Features | Shielded |
| CAD Drawing | 3D CAD 模型 | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
Similar Parts
1507764
Phoenix Contact
Cable Assemblies SACC-M12MSB-5CON PG9 SH AU Conn M12 Circular M/M 5/5 POS ST Cable Mount 10 Terminal 2 Port CONN M12 5POS PLUG Bus system plug connector, male straight, 5-pos., M12, shielded, gold-plated contacts, B-coded Ethernet Cables / Networking Cables SACC-M12MSB-5CON PG9 SH AU BUSSYSTEMPLUGCONNECTORMALE5-POSM12
$210.0520
Details
1430417
Phoenix Contact
Circular Metric Connectors SACC-M12MRB- 5CON-PG 9-SH Conn M12 Circular M 5 POS RA Cable Mount 5 Terminal 1 Port CONN M12 5POS R/A PLUG SACC-M12MRB-5CON-PG9-SH
$180.3360
Details

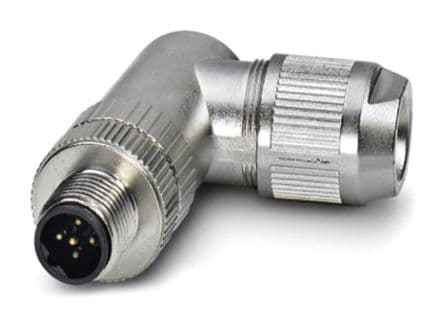

1513583
