点击放大查看

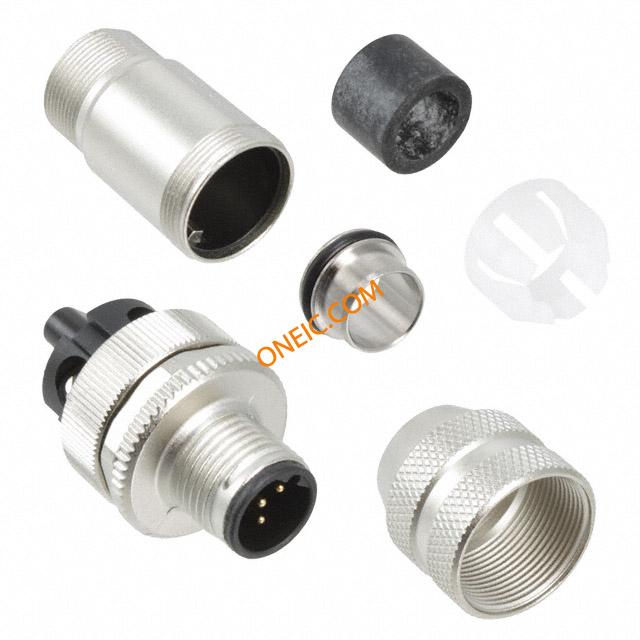

1507764
| Manufacturer | |
| Description | Cable Assemblies SACC-M12MSB-5CON PG9 SH AU Conn M12 Circular M/M 5/5 POS ST Cable Mount 10 Terminal 2 Port CONN M12 5POS PLUG Bus system plug connector, male straight, 5-pos., M12, shielded, gold-plated contacts, B-coded Ethernet Cables / Networking Cables SACC-M12MSB-5CON PG9 SH AU BUSSYSTEMPLUGCONNECTORMALE5-POSM12 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | I/O Assemblies | Tradename | PLUSCON Field |
| Product Category | Cable Assemblies | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Current Rating (Max) | 4A |
| Number of Conductors | 5 | ||
Mechanical
| Length | 8.5 mm | Weight | 1.693150 oz |
| Diameter | 20 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 18 |
| Orientation | B | Termination | Screw |
| Contact Type | (5/5)Signal | 1st Connector | M12 |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Threaded | Contact Material | Brass |
| Length - Overall | 62 | 1st Contact Gender | M/M |
| Number of Contacts | 5/5 | Number of Positions | 5 |
| Shell Size - Insert | M12-5 | Shell Material, Finish | Brass, Nickel Plated |
Product Info
| Type | Bus System Cable | Gender | RCP/RCP |
| Features | Shielded | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
