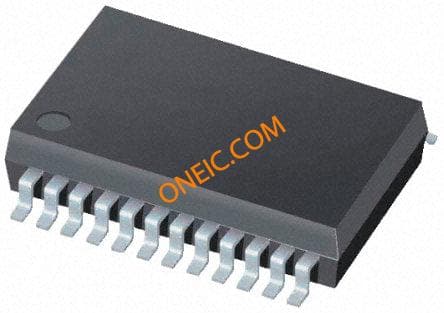

AN33014UA-VB
| Manufacturer | |
| Description | IC REG CTRLR BUCK PWM VM 24SSOP AN33014UA-VB, PWM Switching Regulator, 1.5A Adjustable, 5.3V 1MHz 24-Pin, SSOP Voltage Regulators - Switching Regulators Step-Down Regulator 5V-25V 1ch step down DC-DC REGULATOR, ADJ, BUCK, 1MHZ, 1.2V-9V, SSOP-24, FULL REEL DC-DC REGULATOR, ADJ, BUCK, 1MHZ, 1.2V-9V, SSOP-24 AN33014 Series 5 to 25 V 1.5 A 1 Ch DC-DC Step Down Regulator - SSOP-24 , 1 MHz PWM 开关稳压器, 5.3 V输出, 1.5 A, 可调, 24针 SSOP封装 Switching Voltage Regulators Step-Down Regulator 5V-25V 1ch step down |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85423990 |
Electrical
| PWM Type | Voltage Mode | Output Type | Adjustable |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 25 V |
| Boost Converter | No | Frequency - Max | 1MHz |
| Current - Output | 1.5 A | Voltage - Supply | 5 V ~ 25 V |
| Doubler Converter | No | Flyback Converter | No |
| Number of Outputs | 1 | Divider/Multiplier | No |
| Inverting Converter | No | Frequency - Switching | 1 MHz |
| Voltage - Input (Min) | 25 V | Number of Outputs and Type | 1 |
Mechanical
| Width | 6.1mm | Height | 1.1mm |
| Length | 7.8mm | Weight | 0 |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :24 |
| Package / Case | 24-TSSOP (0.240", 6.10mm Width) | Package Cooled | SSOP |
| Material Finish | :- | Size / Dimension | 7.8 x 6.1 x 1.1mm |
| Number of Positions | 24 | ||
Product Info
| Type | Step-Down Regulators | Controller Type | Step Down |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
