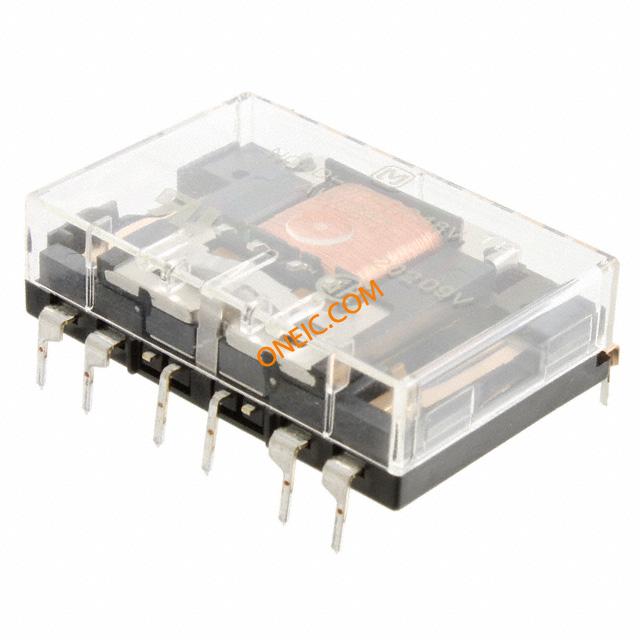

NC4D-JP-DC48V
| Manufacturer | |
| Description | General Purpose Relays 4 Form C 5A 250VAC 48VDC RELAY GEN PURPOSE 4PDT 5A 48V Electromechanical Relay 4PDT 4A 48VDC 3.2KOhm Through Hole POWER RELAY, 48VDC, 5A, 4PDT, PCB General Purpose Relay Coil Voltage: 48 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | General Purpose Relays | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Coil Type | Single Side Stable | Coil Power | 720 mW |
| Coil Current | 15mA | Release Time | 10ms |
| Coil Resistance | 6.4 kOhms | Voltage - Supply | 48 VDC |
| Switching Voltage | 250VAC - Max | Vgs(th) (Max) @ Id | 4.8 VDC |
| Current - Max/Contact | :5A | Power - Average Forward | 360 mW |
| Vce(on) (Max) @ Vge, Ic | 38.4 VDC | Contact Rating (Current) | 5A |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Contact Form | 4 Form C (4PDT-BM) | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Contact Material | Silver Nickel |
| Termination Style | Solder Terminal | Contact Termination | Solder Terminal |
| Contact Layout, Typical | :4PDT | ||
Product Info
| Relay Type | General Purpose | ||
Environmental
| Operate Time | 20ms | Operating Temperature | -40°C ~ 55°C |
