NC4-JPS
| Manufacturer | |
| Description | Relay Sockets & Hardware NC4-flat type PC board socket Conn Relay Socket SKT 16 POS Solder ST Thru-Hole SOCKET PCB FOR FLAT NC4D-JP RELAY SOCKET |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :250VAC | Number of Poles | 4 |
| Current Rating (Max) | :5A | ||
Mechanical
| Depth | 44.3 | Height | 14.8 |
| Weight | 0 | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | :Through Hole | Mounting Style | Through Hole |
| Number of Pins | :16 | Number of Rows | 2 |
| Length - Overall | 40 | Termination Style | PCB |
| Number of Contacts | 16 | Number of Positions | 14 |
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | NC | Accessory Type | Socket, Flat Type PCB |
| Application Specifics | Use with NC4 series relays | Leaded Process Compatible | :Yes |
| For Use With/Related Products | NC4D-JP Relays | ||
Environmental
| Temperature - Test | :Yes | ||
Documents & Media
Similar Parts
NC4D-JP-DC24V
Panasonic Electric Works
General Purpose Relays 5A 24VDC 4PDT FLAT PCB Electromechanical Relay 4PDT 4A 24VDC 800Ohm Through Hole RELAY GEN PURPOSE 4PDT 5A 24V POWER RELAY, 4PDT, 24VDC, 4A, PC BOARD General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4D-JP-DC5V
Panasonic Electric Works
General Purpose Relays 5A 5VDC 4PDT FLAT PCB Electromechanical Relay 4PDT 4A 5VDC 34.7Ohm Through Hole RELAY GENERAL PURPOSE 4PDT 5A 5V POWER RELAY, 5VDC, 5A, 4PDT, PCB General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4D-JP-DC12V
Panasonic Electric Works
General Purpose Relays 5A 12VDC 4PDT FLAT PCB Electromechanical Relay 4PDT 4A 12VDC 200Ohm Through Hole RELAY GEN PURPOSE 4PDT 5A 12V General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4EBD-JP-DC24V
Panasonic Electric Works
General Purpose Relays 5A 24V 4PDT AMB SEAL FLAT PCB Electromechanical Relay 4PDT 5ADC/2AAC 24VDC 800Ohm Through Hole RELAY GEN PURPOSE 4PDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4EBD-JP-DC12V
Panasonic Electric Works
General Purpose Relays 5A 12V 4PDT AMB SEAL FLAT PCB Electromechanical Relay 4PDT 5ADC/2AAC 12VDC 200Ohm Through Hole RELAY GEN PURPOSE 4PDT 5A 12V General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable

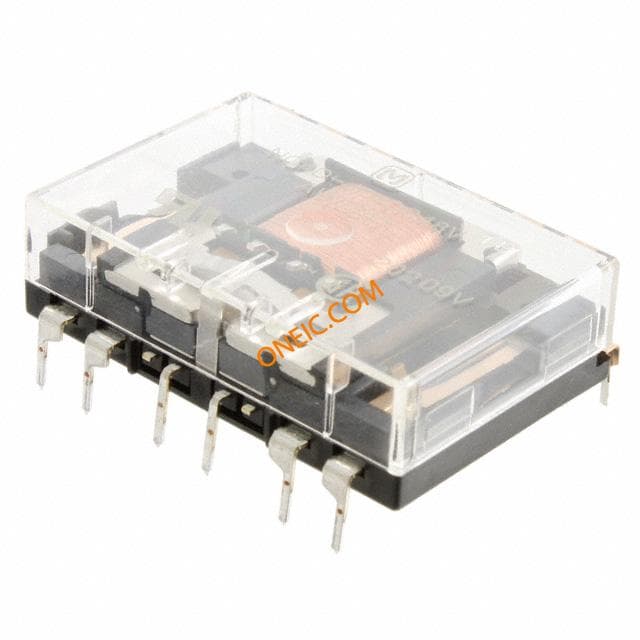

NC4D-JP-DC48V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC 48VDC RELAY GEN PURPOSE 4PDT 5A 48V Electromechanical Relay 4PDT 4A 48VDC 3.2KOhm Through Hole POWER RELAY, 48VDC, 5A, 4PDT, PCB General Purpose Relay Coil Voltage: 48 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable

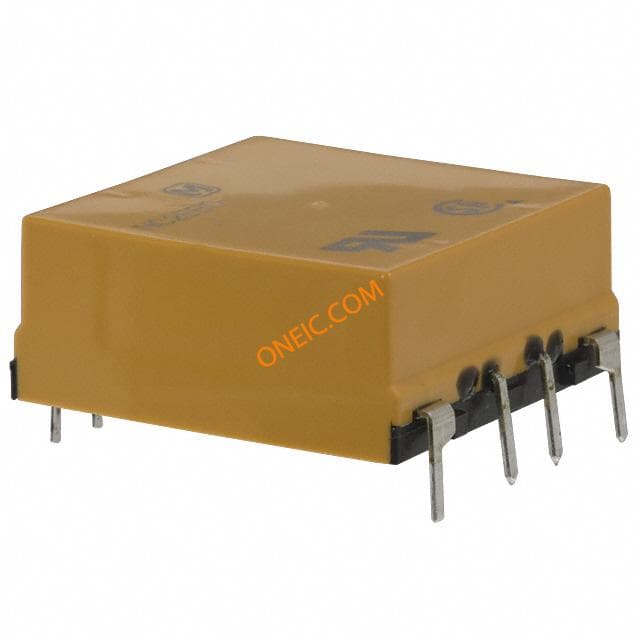

NC4D-JP-DC110V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC 110VDC RELAY GEN PURPOSE 4PDT 5A 110V Electromechanical Relay 4PDT 4A 110VDC Through Hole General Purpose Relay Coil Voltage: 110 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4D-JP-DC6V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC 6VDC Electromechanical Relay 4PDT 4A 6VDC 50Ohm Through Hole RELAY GENERAL PURPOSE 4PDT 5A 6V General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4EBD-JP-DC48V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC Sealed type 48VDC RELAY GEN PURPOSE 4PDT 5A 48V Electromechanical Relay 4PDT 5ADC/2AAC 48VDC 3.2KOhm Through Hole General Purpose Relay Coil Voltage: 48 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4EBD-JP-DC110V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC Sealed type 110VDC RELAY GEN PURPOSE 4PDT 5A 110V Electromechanical Relay 4PDT 5ADC/2AAC 110VDC Through Hole General Purpose Relay Coil Voltage: 110 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
NC4EBD-JP-DC5V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC Sealed type 5VDC Electromechanical Relay 4PDT 5ADC/2AAC 5VDC 34.7Ohm Through Hole General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable
