HC4-PS-K
| Manufacturer | |
| Description | Relay Sockets & Hardware W/CLIP FOR HC4 RELAY Conn Relay Socket SKT 14 POS Solder ST Thru-Hole ACCY RELAY SOCKET W/CLIP HC4 PCB RELAY SOCKET* (4 POLE, PC BOARD MOUNT) Relay socket for HC4, HC4-PS-K, Panasonic |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Rad Hardened | No | ||
Mechanical
| Depth | 29.4 mm | Height | 11.2 mm |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Rows | 4 | Length - Overall | 29.4 mm |
| Termination Style | Solder Pin | Number of Contacts | 14 |
| Number of Positions | 14 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | HC4 | Features | Mounting Hardware |
| Description | Socket for print assembly | Accessory Type | Sockets |
| Number of Slots/Relays | HC4 | For Use With/Related Products | HC4 Relays |
Documents & Media
Similar Parts

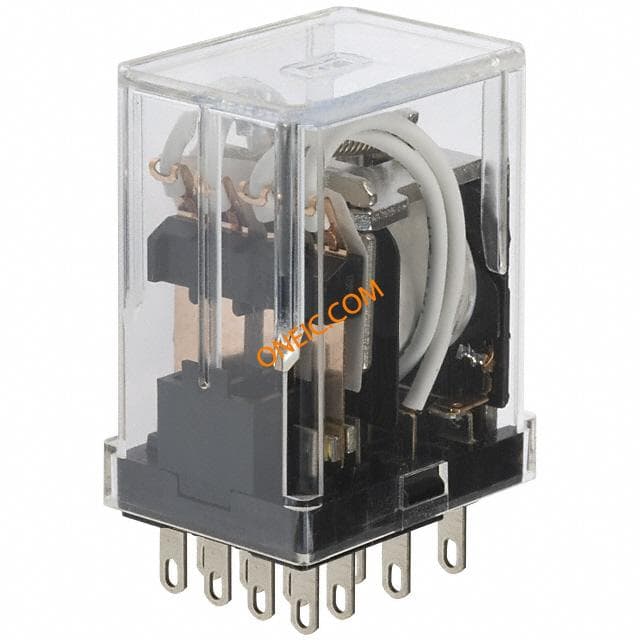

HC2K-DC100V-F
