HC2K-AC115V-F
| Manufacturer | |
| Description | General Purpose Relays HC2K Latching Relay RELAY GEN PURPOSE DPDT 3A 115V Electromechanical Relay DPDT 3A 115VAC Socket |
| Category |
Business
| Standard Package | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Coil Type | Latching, Dual Coil | Coil Power | 1.2 VA |
| Coil Current | 11.4mA | Release Time | 30ms |
| Voltage - Supply | 115VAC | Switching Voltage | 250VAC - Max |
| Vce(on) (Max) @ Vge, Ic | 92 VAC | Contact Rating (Current) | 3A |
Mechanical
| Packaging | Bulk | Contact Form | DPDT (2 Form C) |
| Mounting Type | Socketable | Contact Material | Silver Alloy, Cadmium Free |
| Termination Style | Plug In | ||
Product Info
| Relay Type | General Purpose | ||
Environmental
| Operate Time | 20ms | Mechanical Life | Obsolete |
| Operating Temperature | -40°C ~ 50°C | ||
Documents & Media
Similar Parts
HC4-PS-K
Panasonic Electric Works
Relay Sockets & Hardware W/CLIP FOR HC4 RELAY Conn Relay Socket SKT 14 POS Solder ST Thru-Hole ACCY RELAY SOCKET W/CLIP HC4 PCB RELAY SOCKET* (4 POLE, PC BOARD MOUNT) Relay socket for HC4, HC4-PS-K, Panasonic
HC4-HSF-K
Panasonic Electric Works
Relay Sockets & Hardware FOR HC4 RELAYS FRONT WIRE Conn Relay Socket SKT 14 POS Screw ST Thru-Hole SOCKET SCRW FRONT WIRE HC4 RELAY Socket; Screw Terminal; PCB Mount; 67 mm; 27.8 mm; 30 mm RELAY SOCKET Socket,Relay;ScrewTerminal;PCBMount;67mm;27.8mm;30mm HC4 Relay Socket (4 POLE NON DIN RAIL) HC Series Socket Screw front wire for HC4 Relays 继电器插座, 适用于HC 系列继电器
HC4-SS-K
Panasonic Electric Works
Relay Sockets & Hardware 5A 115VAC 4PDT PLUG IN SOCKET SLD TAB W/CLIP HC4 RELAY Conn Relay Socket SKT 14 POS Solder Lug ST RELAY SOCKET (4 POLE, CHASSIS MOUNT)* HC Series Relay Socket 5 A 115 VAC 4PDT Plug-In Relay socket for HC4, HC4-SS-K, Panasonic

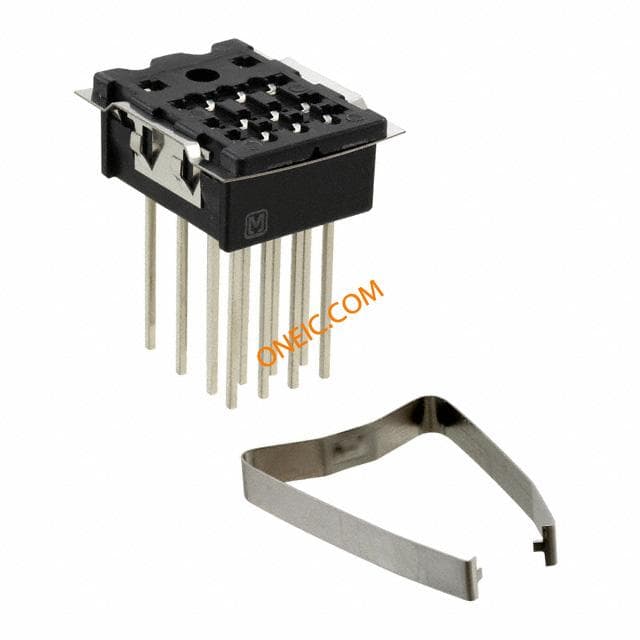

HC4-WS-K
