EEE1EA220SP
| Manufacturer | |
| Description | Cap Aluminum 22uF 25V 20% (6.3 X 5.4mm) SMD 55mA 2000 hr 85°C T/R VS/25V/22uF/85°C/2000h/6,3x5,4mm EEE1EA220SP CAP, ALU ELEC, 22UF, 25V, SMD CAPACITOR, CASE D, 22UF, 25V Capacitor;AluminumElectrolytic;SMTCap22uF25V85Deg Panasonic VS 系列 22μF 25 V 直流 铝电解电容器 , ±20%容差 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10000 | Unit Pack | 1000 |
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85322900 |
Electrical
| Voltage | 25 Vdc | Tolerance | 20 % |
| Capacitance | 22 uF | Range deg/s | :PANASONIC - S Series |
| Power Factor | :0.14 | Voltage Rating | :25V |
| Current - Leakage | :3.5µA | Capacitance - Input | :Radial Can - SMD |
| Frequency Stability | :120Hz | Ripple Current @ Low Frequency | :55mA |
| Ripple Current @ High Frequency | 55 mA | ||
Mechanical
| Depth | :6.6mm | Width | :6.6mm |
| Height | 5.4 mm | Length | :5.4mm |
| Weight | 0.0002 | Diameter | 6.3 mm |
| Packaging | :Cut Tape | Termination | SMT |
| Mounting Type | Surface Mount | Inner Diameter | :0.65mm |
| Material - Blade | AluminumElectrolytic | Tape Width - Max | :16mm |
Product Info
| Type | Cylindrical | Series | :VS |
| Electrical Life | 2000 h | ||
Environmental
| Rated Life | :2000 hours @ 85°C | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | :2000h | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

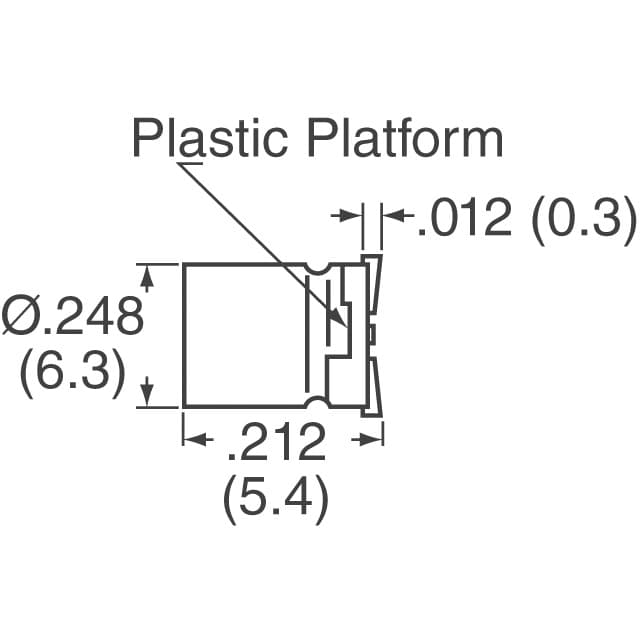

UWX1E220MCL1GB
